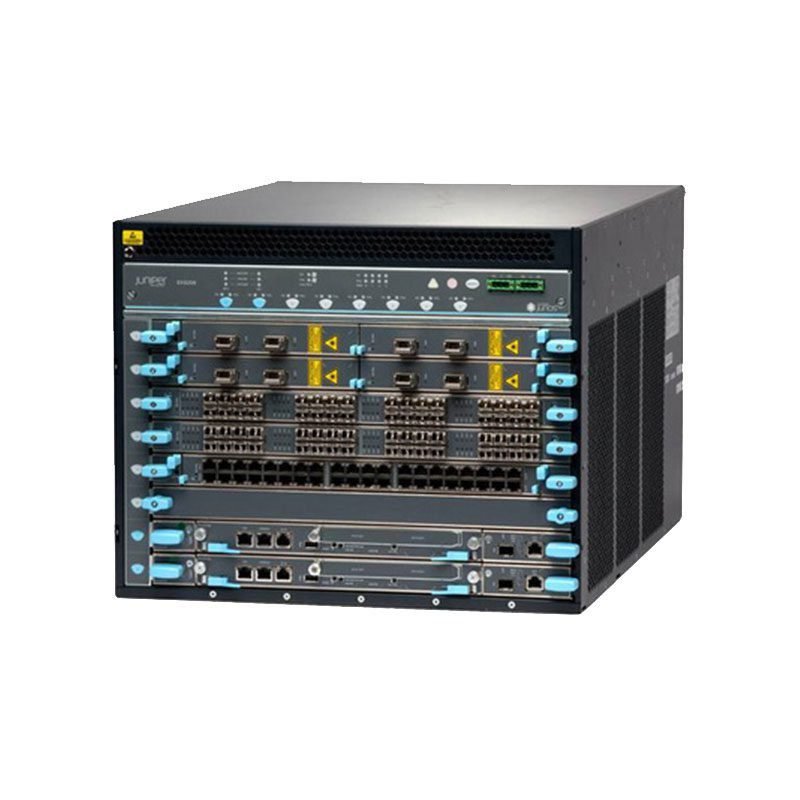

EX9208-BASE-AC Juniper Networks EX Series 9208 Modular Switch

EX9208-BASE-AC Technical Specifications

Juniper Networks EX Series 9208 Switch – Managed Rack-Mountable

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: 9208
Packaged Quantity: 1
Chassis
Airflow Direction: Side to side airflow
Built-in Devices: Midplane, 2 x 32 GB SSD
Installed Devices / Modules Qty: 2
Supported Devices / Modules Qty: 10
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 1.73 GHz
RAM
Installed Size: 16 GB
Performance: Backplane switching capacity: 4.8 Tbps; Per slot per fabric: 240 Gbps
Capacity
Virtual interfaces (VLANs): 32,000; ARP entries: 256,000; Multicast entries (IPv4): 256,000; IPv4 routing table entries: 1,000,000
Networking
Type: Switch; Subcategory: Network hubs and switches; Form Factor: Rack-mountable; Advanced Switching: Layer 3
Routing Protocol: Includes IGMPv3, OSPFv2, and more. Managed remotely via various protocols. Features support for VLANs, QoS, and high availability. Compliant with multiple IEEE standards.
Dimensions & Weight
Width: 17.5 inch; Depth: 27.8 inch; Height: 14 inch; Weight: 88.4 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F; Storage Temperature: -40°F to 158°F; Humidity: 5-90% non-condensing.
