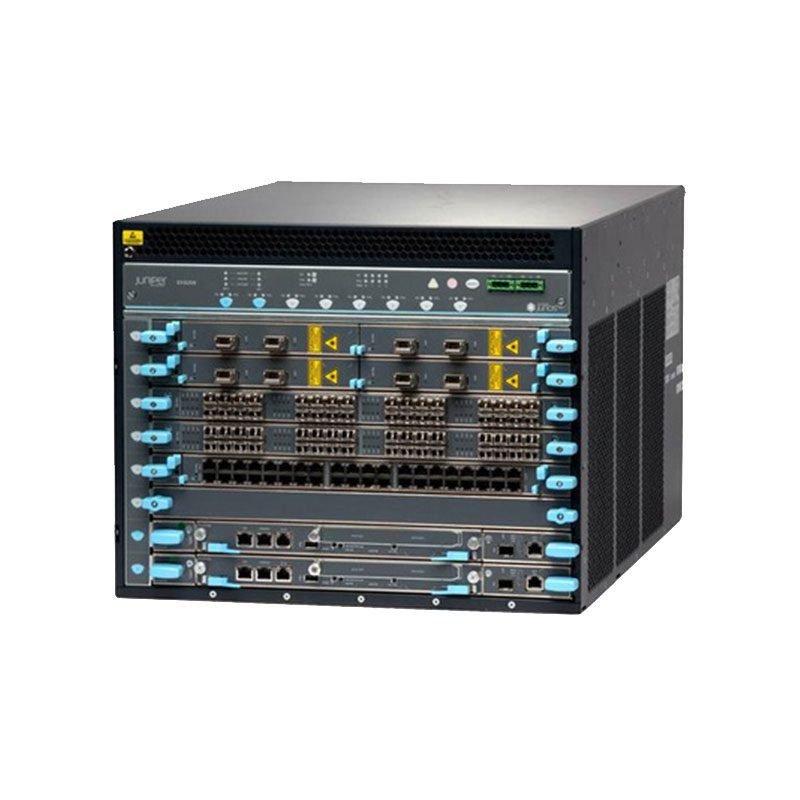

EX9208-REDUND3A-DC Juniper Networks EX Series 9208 Modular Switch

EX9208-REDUND3A-DC Technical Specifications

Juniper Networks EX Series 9208 Managed Rack-Mount Switch

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: 9208
Packaged Quantity: 1
Chassis
Airflow Direction: Side to side
Built-in Devices: Midplane, 2 x 32 GB SSD
Installed Devices / Modules Quantity: 4
Supported Devices / Modules Quantity: 10
Processor
Installed Quantity: 1
Manufacturer: Intel
Clock Speed: 1.73 GHz
RAM
Installed Size: 16 GB
Performance: Per slot per fabric: 240 Gbps, Backplane switching capacity: 4.8 Tbps
Capacity
IPv4 routing table entries: 1,000,000; IPv6 routing table entries: 1,000,000; ARP entries: 256,000; Multicast entries (IPv4): 256,000; Multicast entries (IPv6): 256,000; Virtual interfaces (VLANs): 32,000; QoS hardware queues: 8; Policies: 16,000
Networking
Type: Switch
Subcategory: Network hubs and switches
Form Factor: Rack-mountable
Advanced Switching: Layer 3
Routing Protocols: PIM-SM, PIM-SSM, IGMP, OSPF, and more. Expansion Slots
Total: 6 (free: 6), Switching Fabric Units: 2 (free: 0), Services and Routing Engine: 2 (free: 0)
Power Device
Type: Internal power supply; Hot-Plug: Yes; Power Redundancy: Yes; Power Provided: 2400 watts; Nominal Voltage: DC -40 -72 V; Power Consumption Operational: 800 watts.
Dimensions & Weight
Width: 17.5 in; Depth: 27.8 in; Height: 14 in; Weight: 111.33 lbs.
Environmental Parameters
Operating Temperature: 32°F to 104°F; Storage Temperature: -40°F to 158°F; Humidity Operating: 5 – 90% (non-condensing).
