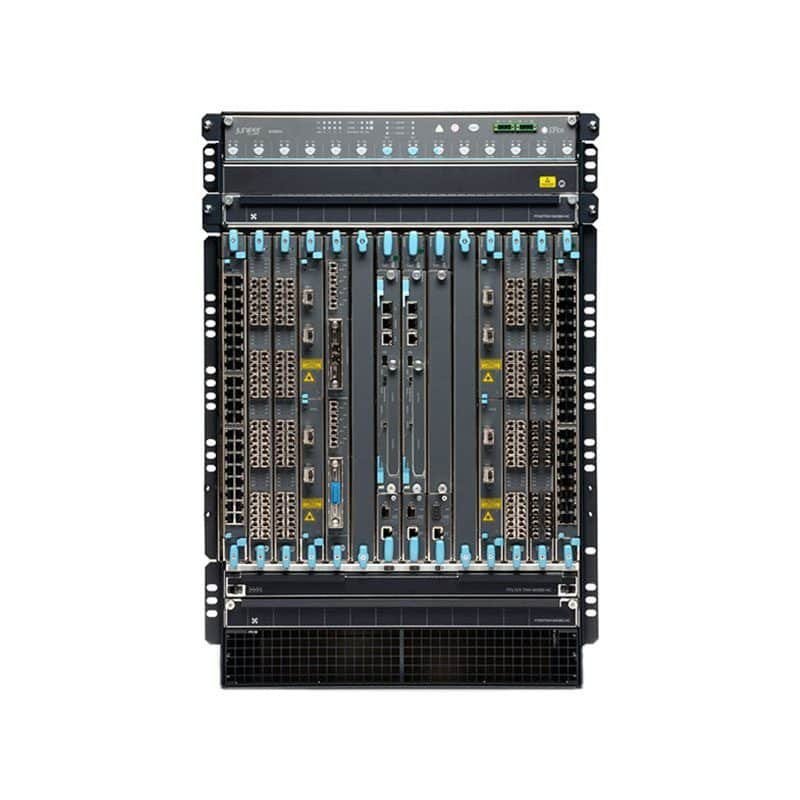

EX9214-BASE3-AC Juniper Networks EX Series 9214 Modular Switch

EX9214-BASE3-AC Technical Specifications

Juniper Networks EX Series 9214 Managed Rack-Mountable Switch

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks EX Series
Model: 9214
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Built-in Devices: 2 x 32 GB SSD, Midplane
Installed Devices/Modules: 3
Supported Devices/Modules: 15
Processor
Installed Quantity: 1
Manufacturer: Intel
Clock Speed: 1.73 GHz
RAM
Installed Size: 16 GB
Performance:
Per slot per fabric: 240 Gbps, Backplane switching capacity: 13.2 Tbps
Capacity
Policies: 16,000; Multicast entries (IPv6): 256,000; ARP entries: 256,000; IPv4 routing table entries: 1,000,000; Multicast entries (IPv4): 256,000; QoS hardware queues: 8; VLANs: 32,000; IPv6 routing table entries: 1,000,000
Networking
Type: Switch
Subcategory: Network hubs and switches
Form Factor: Rack-mountable
Advanced Switching: Layer 3
Routing Protocols: Supports various protocols including IGMPv2, OSPFv3, and more. Compliant with IEEE standards. Expansion Slots
1 SRE slot, 2 Switching Fabric Units, and 12 expansion slots available. Power Device
Internal power supply with redundancy. Dimensions & Weight
Width: 17.5 in, Depth: 27.8 in, Height: 27.8 in, Weight: 203.48 lbs.
Environmental Parameters
Operating temperatures from 32°F to 104°F.
