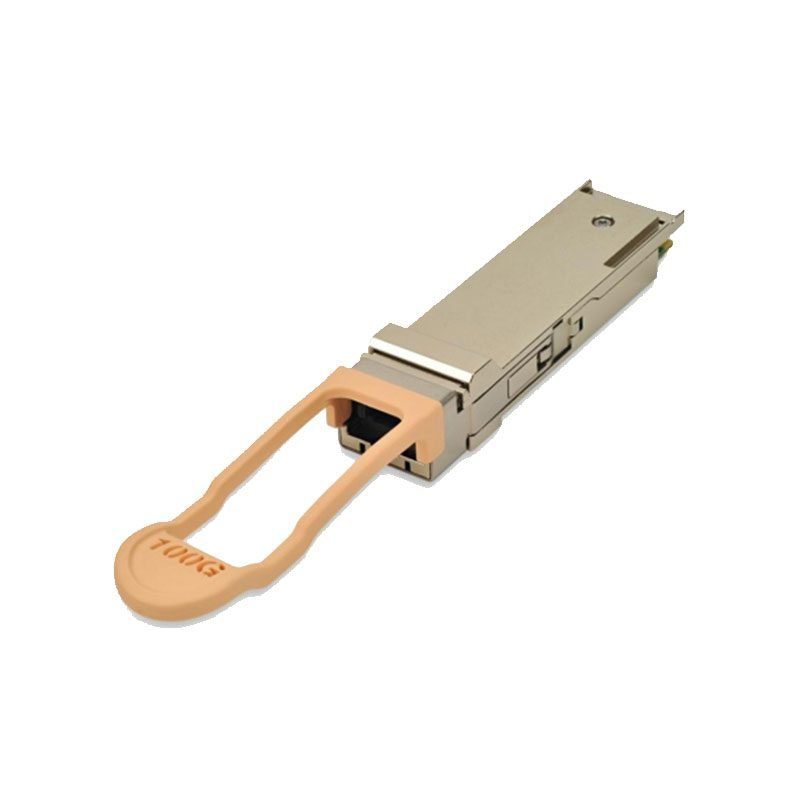

FTL410QD2C 40GBASE-SR4 QSFP+ Transceiver – Gen2

FTL410QD2C Technical Specifications

40GBASE-SR4/4x10GBASE-SR 300m Gen2 QSFP

This four-channel full-duplex transceiver module is hot-pluggable and adheres to the QSFP Plus form factor. It supports a maximum link length of 300 meters on OM3 Multimode Fiber (MMF) and extends to 400 meters on OM4 MMF. The multirate capability allows data rates from 1.06Gb/s to 10.5Gb/s per channel, specifically for 10 Gigabit Ethernet applications. The module features an unretimed XLPPI electrical interface and maintains a maximum power dissipation of less than 1.5W. Utilizing reliable VCSEL array technology, it incorporates built-in digital diagnostic functions, ensuring robust performance. Designed for commercial environments, it operates within a case temperature range of 0°C to 70°C.
