FTLX1471D3BCV-IT Technical Specifications

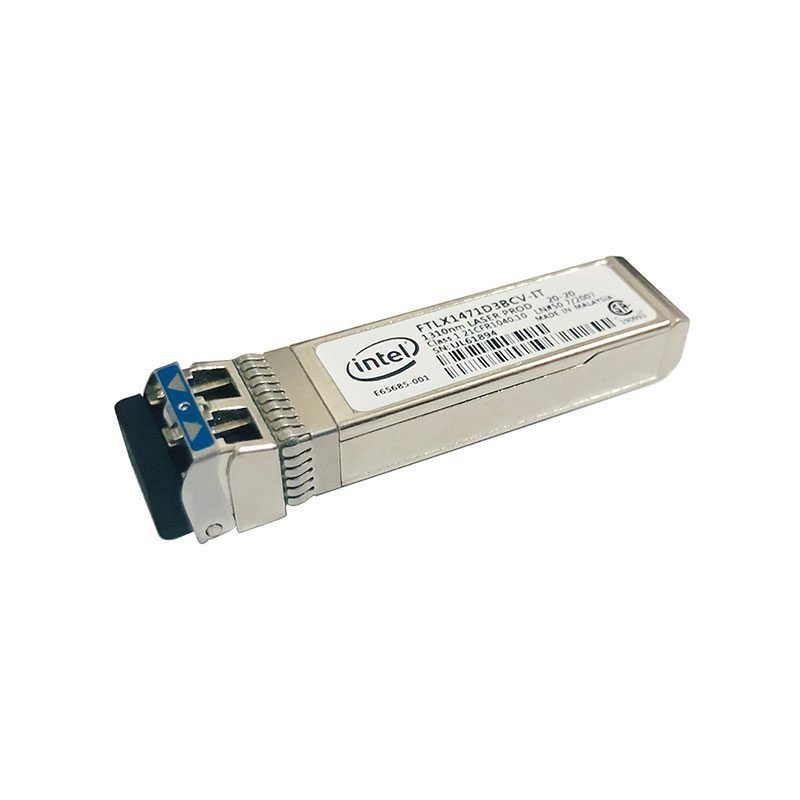

Intel 10GBase-LR SMF Transceiver Module Overview
This hot-pluggable SFP+ module operates at bit rates of 1.25 Gb/s or between 9.95 to 10.3 Gb/s, ensuring robust performance. With a power consumption of less than 1W, it is designed for energy efficiency. It complies with RoHS-6 standards, ensuring it is lead-free. Operating within a commercial temperature range of -5°C to 70°C, it utilizes a single 3.3V power supply. The maximum link length is an impressive 10km, utilizing an uncooled 1310nm DFB laser for optimal signal transmission. The module features a limiting electrical interface for the receiver and comes equipped with a duplex LC connector. Additionally, it includes built-in digital diagnostic functions for enhanced monitoring.
Device Type: SFP+ Transceiver Module
Enclosure Type: Plug-in Module
Connectivity Technology: Wired
Cabling Type: 1000Base-LX, 10GBase-LR
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
Optical Wave Length: 1310 Nm
Interfaces: 1 x Network – Ethernet 10GBase-LR
