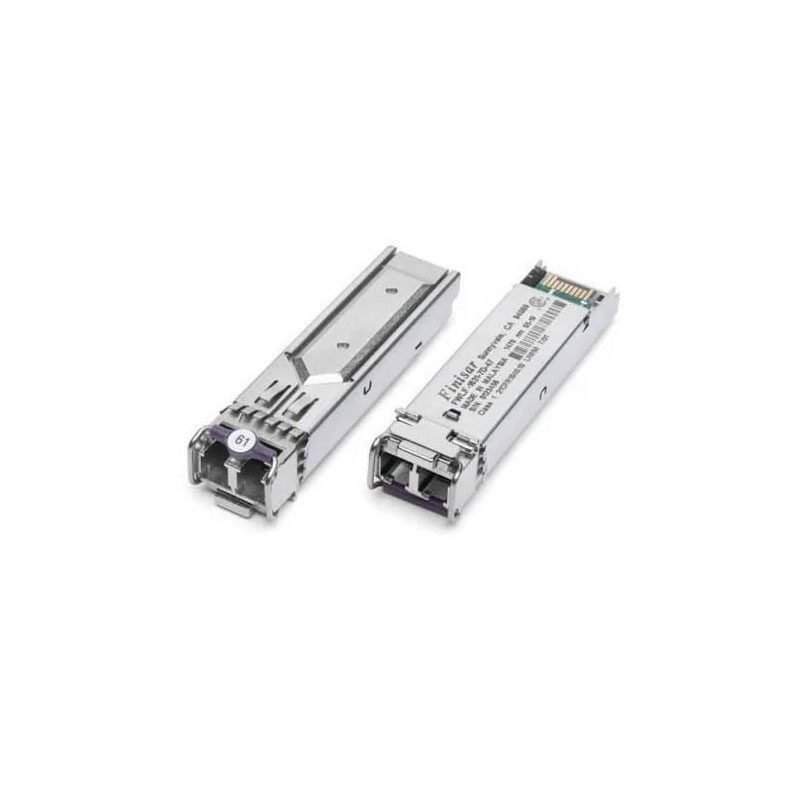

FWLF163231 Technical Specification
Finisar Coherent Transceiver SFP DWDM Ch31 OC-48/STM-16 2.7GBase
Brand: Finisar
EU RoHS: Compliant
Part Status: Obsolete
HTS: COMPONENTS
Automotive: Unknown
PPAP: Unknown
Type: TX/RX
Emitter Type: DFB Laser
Fiber Mode: Single Mode
Maximum Data Rate: 2.7Gbps
Peak Wavelength (nm): 1552.52/1570 (Max)
Form Factor: SFP
Rise Time (ns): 0.15
Maximum Fall Time (ns): 0.15
Average Optical Output Power (dBm): 0 to 4
Minimum Operating Supply Voltage (V): 3.13
Typical Operating Supply Voltage (V): 3.3
Maximum Operating Supply Voltage (V): 3.5
Minimum Operating Temperature (°C): -5
Maximum Operating Temperature (°C): 70
Mounting: Snap Fit To Panel
PCB changed: 20
Pin Count: 20
