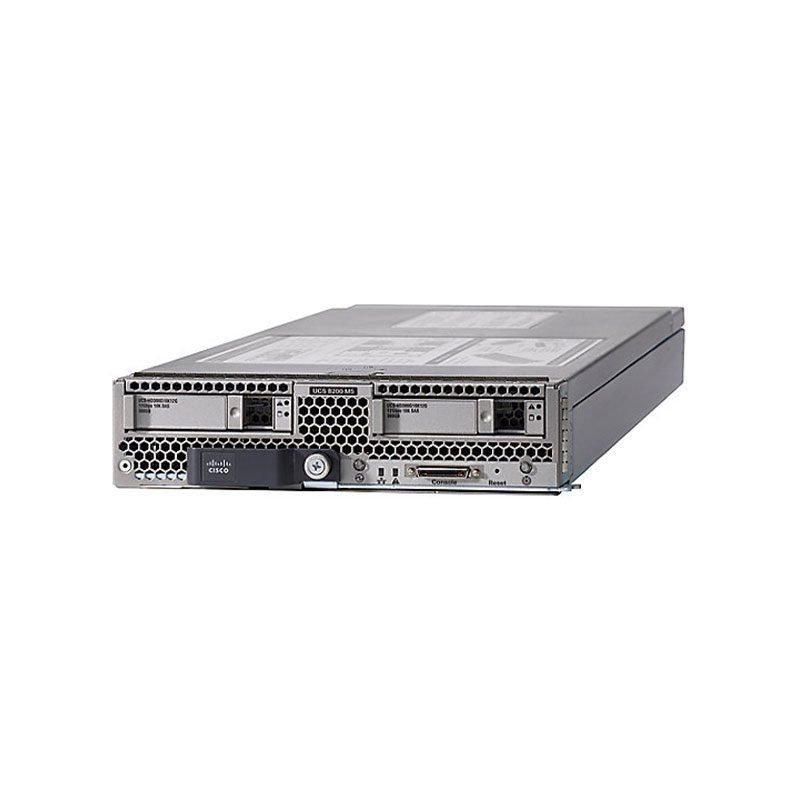

HX-B200-M5-U Cisco UCS B200 M5 Blade Server with No CPU

HX-B200-M5-U Technical Specifications

Cisco UCS B200 M5 Blade Server – blade – no CPU

Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 2
Total Qty: 2 Bays
Card Reader
Supported Flash Memory Cards: SD Memory Card
Chassis
Form Factor: Blade
Hot-Swap Bays Qty: 2
Manufacturer Form Factor: Blade Server
Server Storage Bays: Hot-swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 24.4 in
Height: 2 in
Weight: 9.5 lbs
Width: 8 in
Environmental Parameters
Humidity Range Operating: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Bays
Form Factor (metric): 6.4 cm SFF
Type: Hot-swap
Expansion Slots
Type: Expansion slot, M.2 Card, SD card
Hard Drive
Type: No HDD
Header
Brand: Cisco
Manufacturer: Cisco Unified Computing
Model: B200 M5 Blade Server
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Location: 1 internal
Type: USB 3.0, KVM
Miscellaneous
Color Category: Gray
Compliant Standards: ACPI 4.0
Included Accessories: 24 x DIMM blanks, CPU Heatsink
Networking
Remote Management Controller: Cisco Integrated Management Controller
Optical Storage
Drive Type: No optical drive
OS Provided
Type: No operating system
Printer
Type: None
Processor
Max Supported Qty: 2
Server Scalability: 2-way
Type: No CPU
RAM
Data Integrity Check: Advanced ECC
Empty Slots: 24
Features: Load-Reduced DIMM (LRDIMM), Registered, Through-silicon via DIMMs (TSV DIMMs)
Form Factor: DIMM 288-pin
Installed Size: 0 GB
Max Supported Size: 3072 GB
Slots Qty: 24 DDR4 Slots
Technology: DDR4 SDRAM
