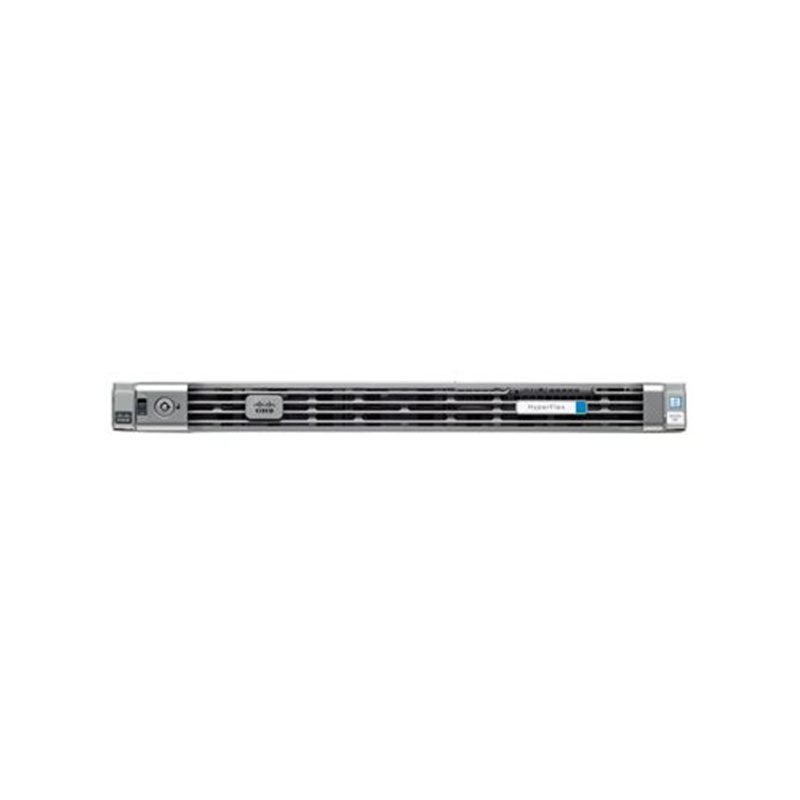

HX-SP-220M4SE1-3A Cisco UCS Smart HX220c Hyperflex System – Compact and Scalable

HX-SP-220M4SE1-3A Technical Specifications

Cisco UCS Smart Play Select HX220c Hyperflex System

Bay Configuration
Form Factor: 2.5″ SFF
Total Bays: 8
Free Bays: 0
Chassis Features
Built-in Devices: Backplane and Cache Memory
Installed Cache: 40 MB
Per Processor Cache: 20 MB
Chassis Design
Form Factor: Rack-mountable
Hot-Swap Bays: 8
Drive Interface: SAS
Cluster Configuration
RAID Level: JBOD
Dimensions
Depth: 29.8 in
Height: 1.7 in
Width: 16.9 in
Environmental Conditions
Operating Humidity: 10 – 90% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Expansion Capabilities
Form Factor: 6.4 cm SFF
Type: Hot-swap
Processor Details
Clock Speed: 1.8 GHz
Installed Processors: 2 x Intel E5-2630LV3 (8-core)
Max Turbo Speed: 2.9 GHz
Memory Configuration
Installed RAM: 256 GB (8 x 32 GB DIMM)
Max Supported RAM: 768 GB
Memory Speed: 2133 MHz
Power Specifications
Power Supply: 770 Watt, 1+1 Redundancy
Nominal Voltage: AC 120/230 V
Frequency: 50/60 Hz
Networking Features
Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet Ports: 2 x Gigabit, 2 x SFP+
Remote Management: Cisco Integrated Management Controller.
