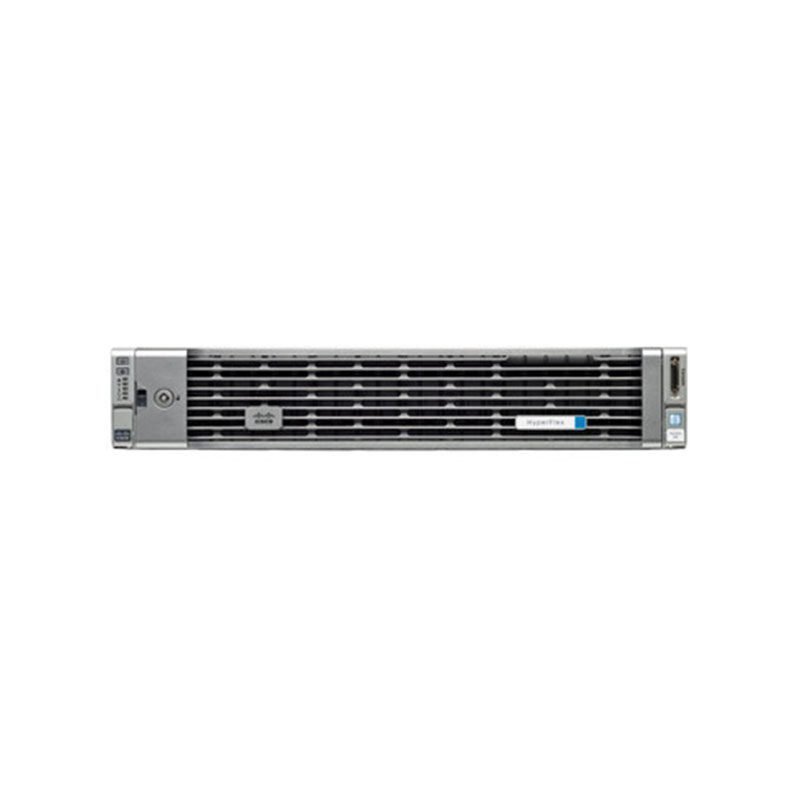

HX-SP-240M4SBV1-5A Cisco UCS Smart Play HX240c Hyperflex Node

HX-SP-240M4SBV1-5A Technical Specifications

Cisco UCS Smart Play HX240c Hyperflex System

Storage Bays
Form Factor: 2.5″ SFF, Total Bays: 24, Free Bays: 9.
Cache Memory
Installed Size: 60 MB, per Processor: 30 MB.
Chassis
Rack-mountable, Hot-swap Bays: 24.
Cluster Configuration
RAID Level: JBOD.
Dimensions & Weight
Depth: 29.1 in, Height: 3.4 in, Width: 17.6 in.
Environmental Conditions
Operating Humidity: 10 – 90%, Max Temperature: 95 °F, Min Temperature: 41 °F.
Expansion Capabilities
Hot-swap Type: Internal, Slots: PCIe x16, PCIe x8, DIMM 288-pin, etc.
Storage Drives
1 SSD Boot Drive (120 GB), 15 HDD (1.2 TB each, 10,000 rpm).
Header
Brand: Cisco, Model: Smart Play Select HX240c Hyperflex System.
Power Supply
Installed Qty: 2, Power: 1400 Watt, Redundant Scheme: 1+1.
Processor
Intel Xeon E5-2650V4, 2.2 GHz, 12-core, Upgradable.
RAM
384 GB, 24 x 16 GB DDR4, 2400 MHz.
