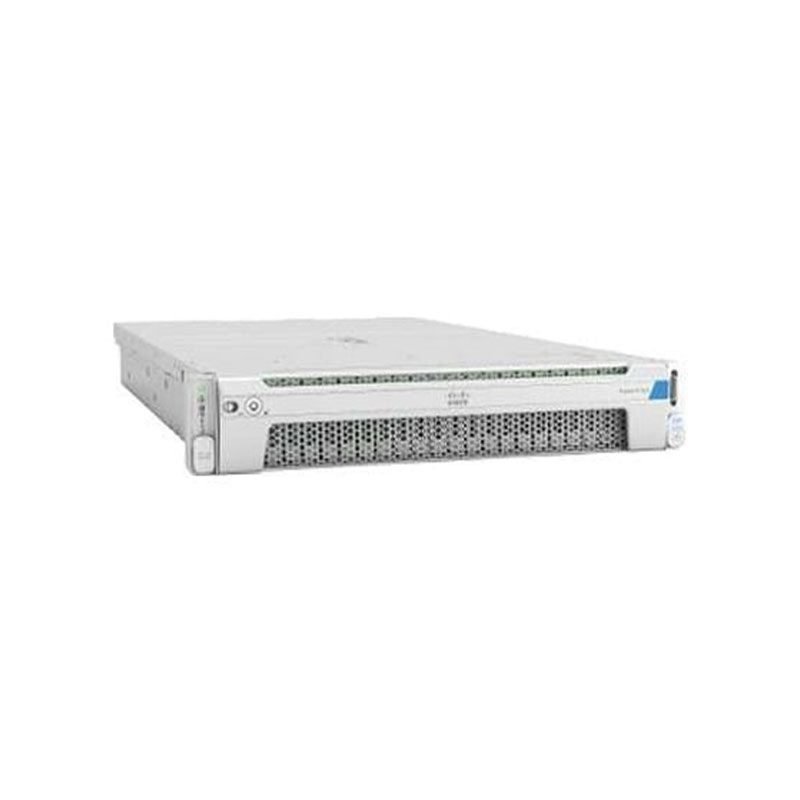

HX-SP-240M5SX-P Cisco Systems HyperFlex HX240C Server

HX-SP-240M5SX-P Technical Specifications

Cisco Systems SP HX240C HyperFlex Server

General Information
Product Name: SP HX240C HyperFlex Server 2X6140 12X32 Gmem
Manufacturer Part Number: HX-SP-240M5SX-P
Product Line: HyperFlex
Product Series: HX240c M5
Product Type: Server
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: No
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: Up to 16 MB
I/O Expansions
Total Expansion Bays: 26
2.5″ Internal Bays: 26
Hot Swap Bays: Yes
Memory
Standard Memory: 512 GB
Maximum Memory: 3 TB
Memory Technology: DDR4 SDRAM
Total Memory Slots: 24 DDR4 Slots
Occupied Memory Slots: 16
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Power Description
Input Voltage: 120 V AC, 230 V AC
Supported Power Supplies: 2
Processor & Chipset
Supported Processors: 2
Installed Processors: 2
Processor Manufacturer: Intel
Processor Type: Xeon Gold
Processor Model: 6140
Processor Cores: Octadeca-core (18 Core)
Processor Speed: 2.30 GHz
Physical Characteristics
Form Factor: Rack
Rack Height: 2U Rack Mount
Height: 3.4″
Width: 19″
Depth: 30.2″
