MS120-48-HW Cisco Meraki 48-Port Cloud Switch

MS120-48-HW Technical Specifications

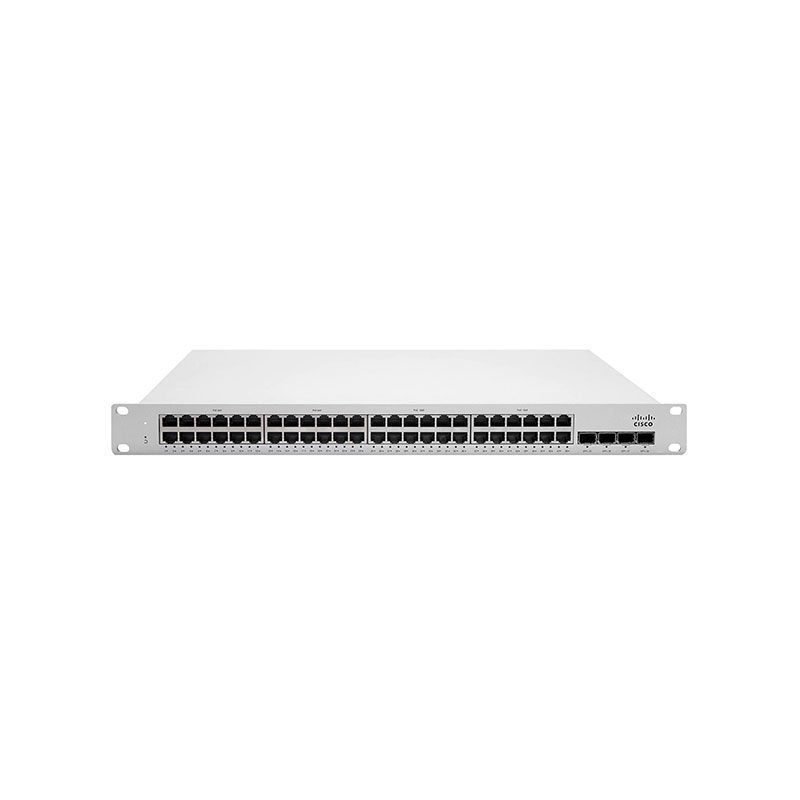

Cisco Meraki Cloud Managed MS120-48 Switch 48 Port

Environmental Parameters
Operating Humidity: 5 – 95% (non-condensing)
Maximum Operating Temperature: 104 °F
Minimum Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Manufacturer: Meraki
Model: MS120-48
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Ethernet Technology: Gigabit Ethernet
Product Series: MS120
Interface Provided
Connector Type: RJ-45
Quantity: 48 Ports
Type: 1000Base-T
Connector Type: SFP
Quantity: 4 SFP
Ethernet Technology: Gigabit Ethernet
Miscellaneous
Authentication Method: RADIUS
Color Category: White
Compliant Standards: CSA, FCC, IC, RCM, RoHS
Height (Rack Units): 1
MTBF: 1,154,812 hours
Rack Mounting Kit: Included
Networking
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Connectivity Technology: Wired
Features: Access Control List support, Auto-negotiation, Broadcast Storm Control, Cisco Discovery Protocol, DHCP snooping, IGMP snooping, Quality of Service support, VLAN support, and more.
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9578 bytes
Manageable: Yes
Ports Quantity: 48
Remote Management Protocol: SNMP
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Power Device
Frequency Required: 47 – 63 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply
Dimensions & Weight
Depth: 9.8 in
Height: 1.7 in
Weight: 8.77 lbs
Width: 17.3 in
Capacity
Type: MAC forwarding entries
Value: 32000
Type: VLANs supported
Value: 4094
Performance
Type: Forwarding rate
Value: 77.38 Mpps
Type: Switching capacity
Value: 104 Gbps
Ports
Quantity: 48
Type: 10/100/1000
Ports (2nd)
Quantity: 4
Type: Gigabit SFP
