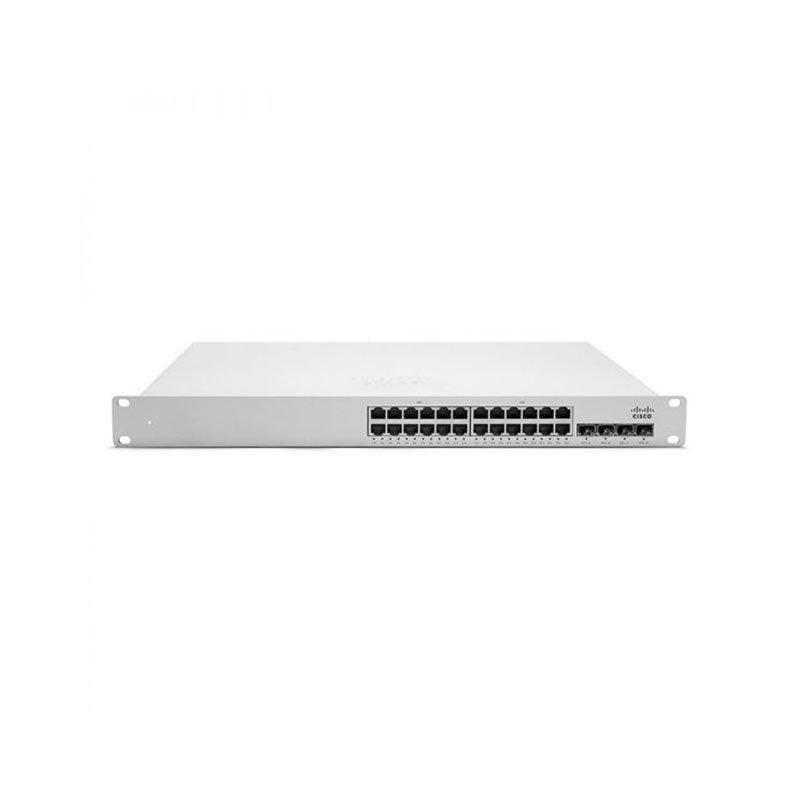

MS125-24-HW Cisco Meraki MS125-24 24-Port Switch

MS125-24-HW Technical Specifications

Cisco Meraki MS125-24 24-Port Switch

Capacity
Type: MAC forwarding entries
Value: 16,000
Type: VLANs supported
Value: 4,094
Dimensions & Weight
Depth: 9.8 in
Height: 1.7 in
Weight: 8.16 lbs
Width: 17.3 in
Environmental Parameters
Operating Humidity Range: 5 – 95% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Manufacturer: Meraki
Model: MS125-24
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS125
Interface Provided
Connector Type: RJ-45
Qty: 24 Ports
Type: 1000Base-T
Connector Type: SFP+
Qty: 4 SFP+
Type: 10Gbit LAN
Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Miscellaneous
Authentication Method: RADIUS
Color Category: White
Compliant Standards: CSA, FCC, IC, RCM, RoHS
Height (Rack Units): 1U Rack Mount
MTBF: 1,957,381 hours
Rack Mounting Kit: Included
Networking
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP)
Features: Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Cisco Discovery Protocol, Crossover detection, DHCP client, DHCP snooping, DSCP to CoS Mutation, E-mail alert, Fanless, Firmware upgradable, Flow control, IGMP snooping, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Role-Based Access Control (RBAC), Security lock slot (cable lock sold separately), Single Sign-On (SSO) support, SMS alert, Spanning Tree Protocol (STP) support, STP BPDU Guard, STP Root Guard, Syslog support, VLAN support, Zero-touch provisioning (ZTP)
Form Factor: Desktop, Wall-mountable
Jumbo Frame Support: 9578 bytes
Manageable: Yes
Ports Qty: 24
Remote Management Protocol: SNMP
Subcategory: Network hubs and switches
Subtype: 10 Gigabit Ethernet
Type: Switch
Performance
Type: Forwarding rate
Value: 95.23 Mpps
Type: Switching capacity
Value: 128 Gbps
Ports
Qty: 24
Type: 10/100/1000
Ports (2nd)
Qty: 4
Type: 10 Gigabit SFP+
Power Device
Frequency Required: 47 – 63 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply
