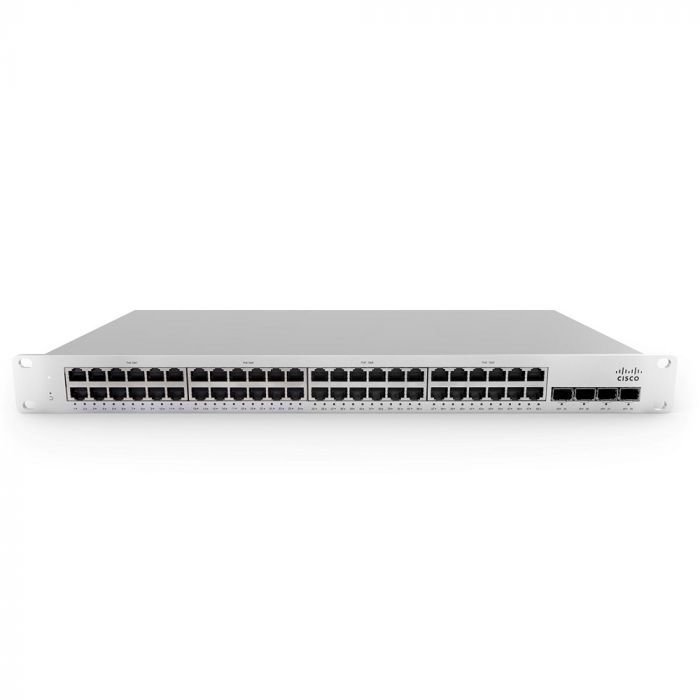

MS225-48FP-HW Cisco Meraki MS225-48FP 48-Port Switch

MS225-48FP-HW Technical Specifications

Cisco Meraki MS225-48FP 48-Port Switch

Dimensions & Weight
Depth: 13.4 in
Height: 1.7 in
Weight: 9.63 lbs
Width: 19.1 in
Environmental Parameters
Operating Humidity Range: 5 – 95% (non-condensing)
Maximum Operating Temperature: 104 °F
Minimum Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Compatibility: PC
Ethernet Technology: Gigabit Ethernet
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS225-48FP
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS225
Interface Provided
Comments: PoE+
Connector Type: RJ-45
Quantity: 48 Ports
Type: 1000Base-T
Comments: Uplink
Connector Type: SFP+
Quantity: 4 SFP+
Type: 10Gbit LAN
Miscellaneous
Authentication Method: RADIUS
Color Category: White
Compliant Standards: CSA, FCC, IC, RCM, RoHS
Height (Rack Units): 1
MTBF: 320,555 hours
Networking
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU, Broadcast Storm Control, Cisco Discovery Protocol, Cloud managed, Crossover detection, DHCP relay, DHCP support, E-mail alert, Firmware upgradable, Flow control, IGMP snooping, IPv4 support, Jumbo Frames support, LACP, LLDP support, QoS, RSTP support, RBAC, Root Guard, SMS alert, STP support, Static routing, Syslog support, VLAN support
Form Factor: Rack-mountable
Manageable: Yes
Max Units In A Stack: 8
PoE Budget: 740 W
Ports Quantity: 48
Power Over Ethernet (PoE): PoE+
Remote Management Protocol: SNMP
Stackable: Yes
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Ports
Quantity: 48
Type: 10/100/1000 (PoE+)
Ports (2nd)
Quantity: 4
Type: 10 Gigabit SFP+ (uplink)
Power Device
Features: RPS connector
Frequency Required: 47 – 63 Hz
Nominal Voltage: AC 120/230 V
Power Redundancy: Optional
Type: Internal power supply
