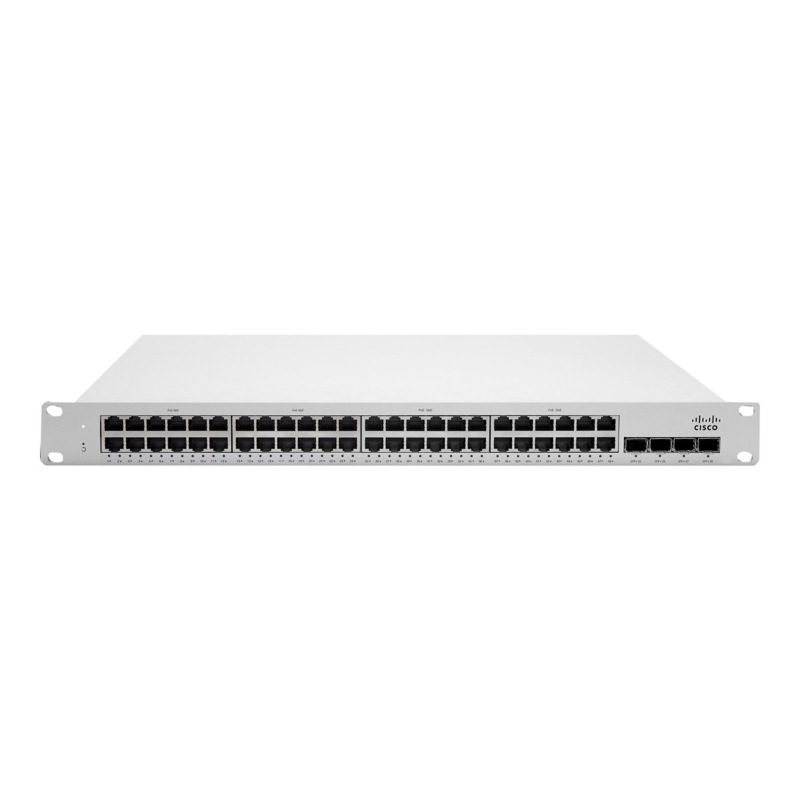

MS225-48LP-HW Cisco Meraki MS225-48LP 48-Port Switch

MS225-48LP-HW Technical Specifications

Cisco Meraki MS225-48LP 48-Port Switch

Dimensions & Weight
Depth: 13.4 inches
Height: 1.7 inches
Weight: 9.63 lbs
Width: 19.1 inches
Environmental Parameters
Operating Humidity Range: 5 – 95% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Compatibility: PC
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS225-48LP
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS225
Networking Technology
Ethernet Technology: Gigabit Ethernet
Interface Provided
Comments: PoE+
Connector Type: RJ-45
Qty: 48 Ports
Type: 1000Base-T
Comments: Uplink
Connector Type: SFP+
Qty: 4 SFP+
Type: 10Gbit LAN
Miscellaneous
Authentication Method: RADIUS
Color Category: White
Compliant Standards: CSA, FCC, IC, RCM, RoHS
Height (Rack Units): 1
MTBF: 381,015 hours
Features
Compliant Standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at
Additional Features: Auto-negotiation, Cloud managed, Firmware upgradable, VLAN support, and more.
Power Device
Features: Redundant Power System (RPS) connector
Frequency Required: 47 – 63 Hz
Nominal Voltage: AC 120/230 V
Power Redundancy: Optional
Type: Internal power supply.
