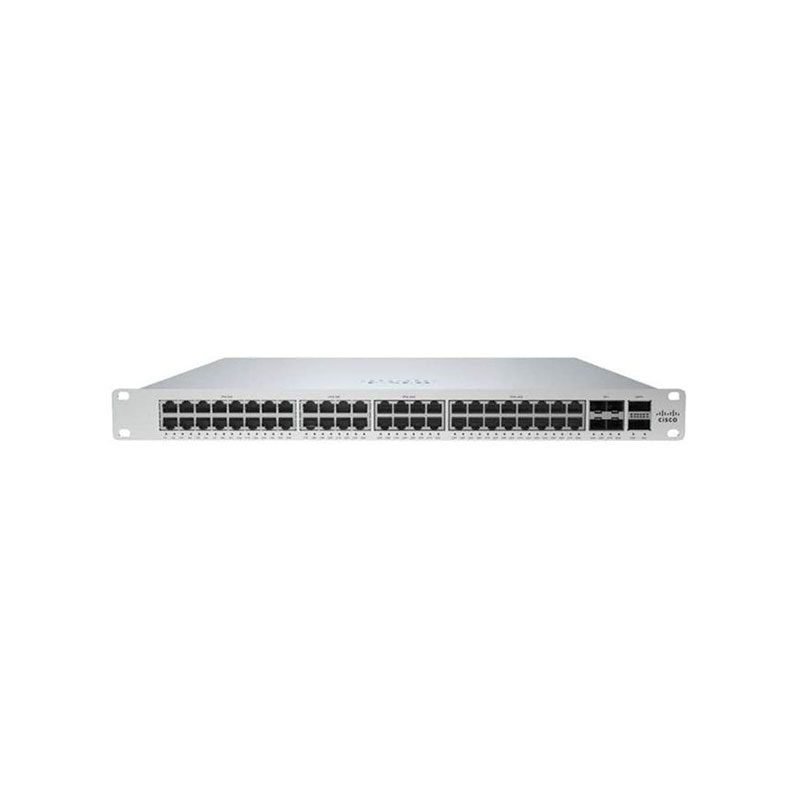

MS355-48X-HW Cisco Meraki 48-Port Cloud Managed Switch

MS355-48X-HW Technical Specifications

Cisco Meraki Cloud Managed MS355-48X Switch 48 Port Managed

Environmental Parameters
Operating Humidity Range: 5 – 95% (non-condensing)
Maximum Operating Temperature: 113 °F
Minimum Operating Temperature: 32 °F
Header
Brand: Cisco Meraki
Manufacturer: CISCO DS HARDWARE DIRECT
Model: MS355-48X
Packaged Quantity: 1
Product Line: Cisco Meraki Cloud Managed
Product Series: MS355
Interface Provided
Comments: Stacking
Connector Type: QSFP28
Type: 100Gbit LAN
Comments: Uplink
Connector Type & Qty: 4 SFP+
Type: 10Gbit LAN
Comments: UPOE
Connector Type: RJ-45
Qty: 16
Type: 100/1000/2.5G/5G/10GBase-T
Connector Type: QSFP+
Qty: 2
Type: 40Gbit LAN
Qty: 32
Type: 1000Base-T
Miscellaneous
Authentication Method: RADIUS
Color Category: Silver
Compliant Standards: C-Tick, CSA, IC, RoHS
Height (Rack Units): 1
MTBF: 343,134 hours
Rack Mounting Kit: Included
Networking
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features: ARP support, Auto-negotiation, BPDU, Broadcast Storm Control, Crossover detection, DHCP relay, DHCP server, Dynamic ARP Inspection (DAI), Email alert, Flow control, LLDP support, Loop Guard, Port mirroring, Push notification, RSTP support, Role-Based Access Control (RBAC), Root Guard, SMS alert, STP support, Static routing, Syslog support, Uni-Directional Link Detection (UDLD), VLAN support
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9600 bytes
MAC Address Table Size: 32K entries
Manageable: Yes
Max Units in a Stack: 8
Ports Qty: 48
Power Over Ethernet (PoE): UPOE
Remote Management Protocol: SNMP
Routing Protocol: IGMP, OSPFv2, Static IP routing, VRRP
Stackable: Stackable
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Power Device
Frequency Required: 50/60 Hz
Hot-Plug: Hot-plug
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 1793 Watt
Power Provided: 740 Watt
Type: Internal power supply
Dimensions & Weight
Depth: 20.3 in
Height: 1.7 in
Weight: 13.01 lbs
Width: 19.1 in
Capacity
Type: Tagged VLANs
Value: 4096
Performance
Type: Forwarding rate
Value: 405 Mpps
Type: Switching capacity
Value: 544 Gbps
Ports
Total Qty: 48 Port Network Switch
Qty: 16
Type: 1/2.5/5/10GBase-T
Ports (2nd)
Qty: 32
Type: 1000Base-T
Ports (3rd)
Qty: 4
Type: 10 Gigabit SFP+
Ports (4th)
Qty: 2
Type: 40 Gigabit QSFP+
