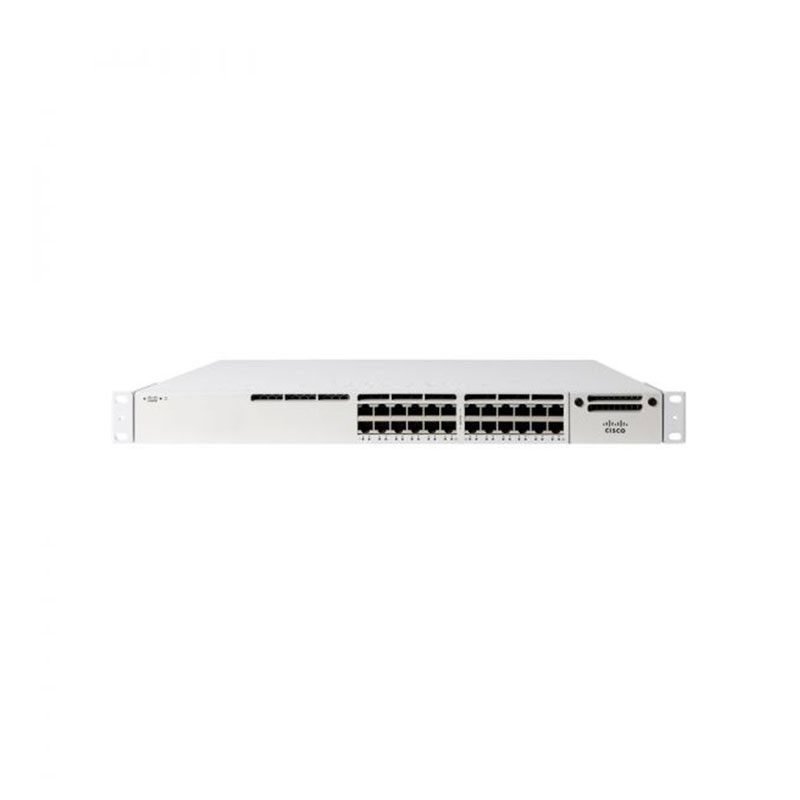

MS390-24P-HW Meraki 24-Port PoE Gigabit Switch

MS390-24P-HW Technical Specifications

Meraki 24-Port PoE Gigabit Switch

Product Line: Meraki
Product Series: MS390
Interfaces/Ports
Total Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 24 x Gigabit Ethernet PoE+, 2 x Stack, 1 x Expansion Slot
Ethernet Technology: Gigabit Ethernet
Media & Performance
Supported Media Types: Twisted Pair, Optical Fiber
Network Technology: 10/100/1000Base-T
I/O Expansions
Total Expansion Slots: 1
Expansion Slot Type: I/O Module
Network & Communication
Supported Layer: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Rack Unit Compatibility: 1U
Form Factor: Rack-mountable
Dimensions: Height 1.7″, Width 17.5″, Depth 17.7″
Weight: Approximately 16.33 lb
Miscellaneous
Package Contents:
– 24-port Gbe PoE+ Switch
– 1 x Power Supply (MA-PWR-715WAC)
– Rack Mount Brackets and Screw Kit
– 3 x Pre-Installed Fans
Cable Guide
Environmentally Friendly: Yes
Environmental Certification: RoHS
