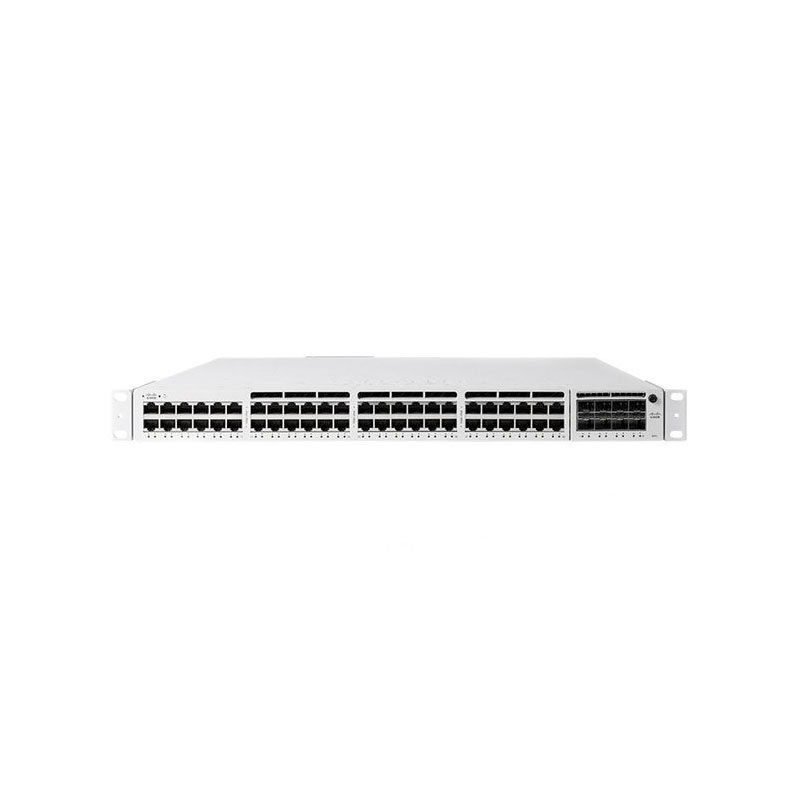

MS390-48-HW Meraki 48-Port Gigabit Ethernet Switch

MS390-48-HW Technical Specifications

Meraki 48-Port Gigabit Ethernet Switch

Product Line: Meraki
Product Series: MS390
Interfaces/Ports
Total Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 48 x Gigabit Ethernet, 2 x Stack, 1 x Expansion Slot
Media & Performance
Supported Media Types: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Total Expansion Slots: 1
Expansion Slot Type: I/O Module
Network & Communication
Supported Layer: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.5″
Depth: 17.7″
Weight (Approximate): 16.43 lb
Miscellaneous
Package Contents:
– 48-port Gigabit Ethernet Switch
– 1 x Power Supply (MA-PWR-350WAC)
– Rack Mount Brackets and Screw Kit
– 3 x Pre-Installed Fans
Cable Guide
Environmentally Friendly: Yes
Environmental Certification: RoHS
