Q8N52A Technical Specification

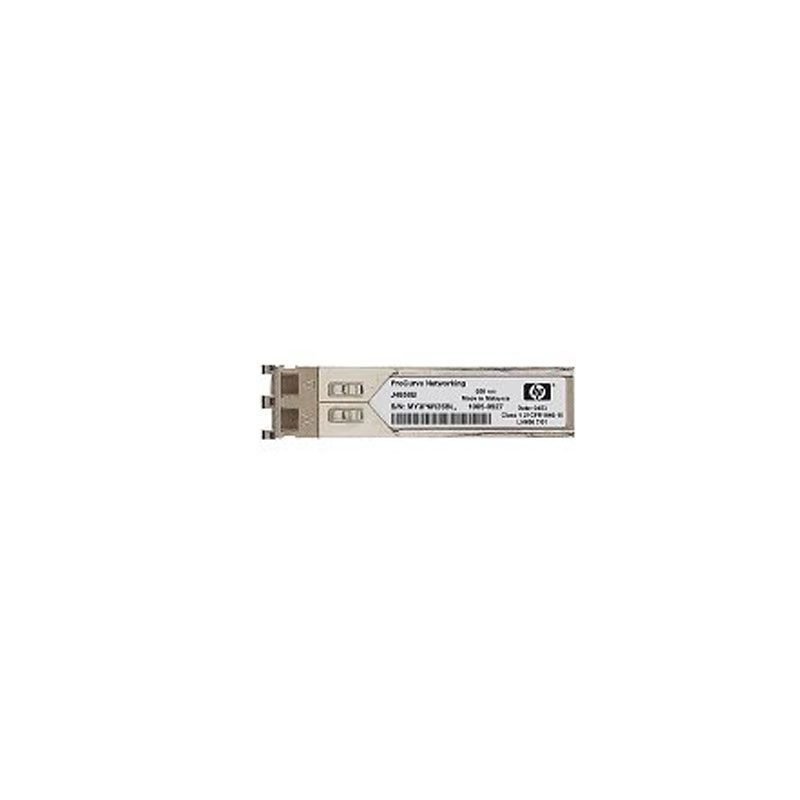

Aruba SFP-LX Extended Temperature 1000BASE-LX SFP Module
Brand: Aruba
Media Type: Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm
RX Wavelength: 1310 nm
Minimum Optical Budget: 13 dB
Maximum Distance: Up to 10 km
Supported Data Rate: 1.063 to 1.25 Gbps
Supported Applications: Compatible with Gigabit Ethernet (1.25 Gbps) and 1G Fiber Channel (1.0625 Gbps)
DDM/DOM: Yes
Temperature Range: Industrial -45°C to +85°C
Connectors: Double LC
Tx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Rx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Minimum Transmitting Power: -9 dB
Maximum Transmitting Power: 3 dB
Receiver Sensitivity: -22 dBm
Receiver Overload: -3 dBm
Dispersion: 70-100 ps/nm
Transmitter Type: FP Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
