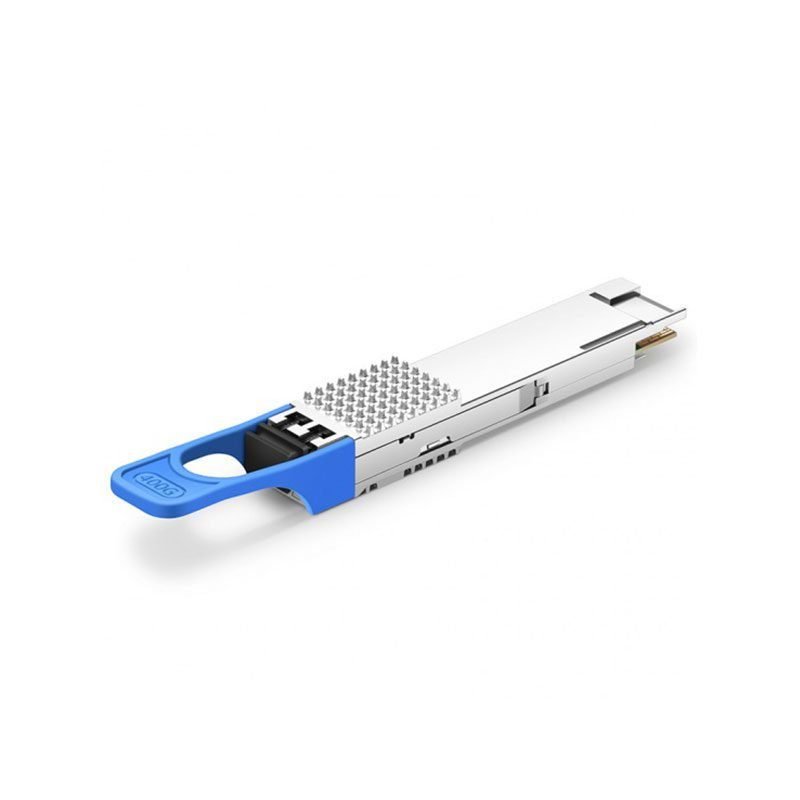

QDD-400G-LR8 Juniper Networks 400G QSFP-DD Transceiver Module

QDD-400G-LR8 Technical Specifications

Juniper Networks 400 Gigabit QSFP-DD Transceiver

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper, Juniper Networks
Packaged Quantity: 1
Networking
Type: QSFP-DD Transceiver Module
Form Factor: Plug-in module
Connectivity Technology: Wired
Cabling Type: Ethernet 400GBase-LR8
Data Link Protocol: 400 Gigabit Ethernet
Data Transfer Rate: 400 Gbps
Optical Wave Length: 1272.55 (TX) / 1310.19 (RX) nm
Max Transfer Distance: 6.2 km
Features: Supports Digital Diagnostics Monitoring (DDM) and Digital Optical Monitoring (DOM)
Connectors (for SD)
Left Connector Type: 2 x LC single-mode
Interface Provided
Interfaces: 2 x Ethernet 400GBase-LR8 – LC single-mode
Power Device
Power Consumption Operational: 14 watts
Miscellaneous
Compliant Standards: MSA
Dimensions & Weight
Width: 0.7 inches
Depth: 3.7 inches
Height: 0.5 inches
Weight: 7.05 ounces
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 158°F
