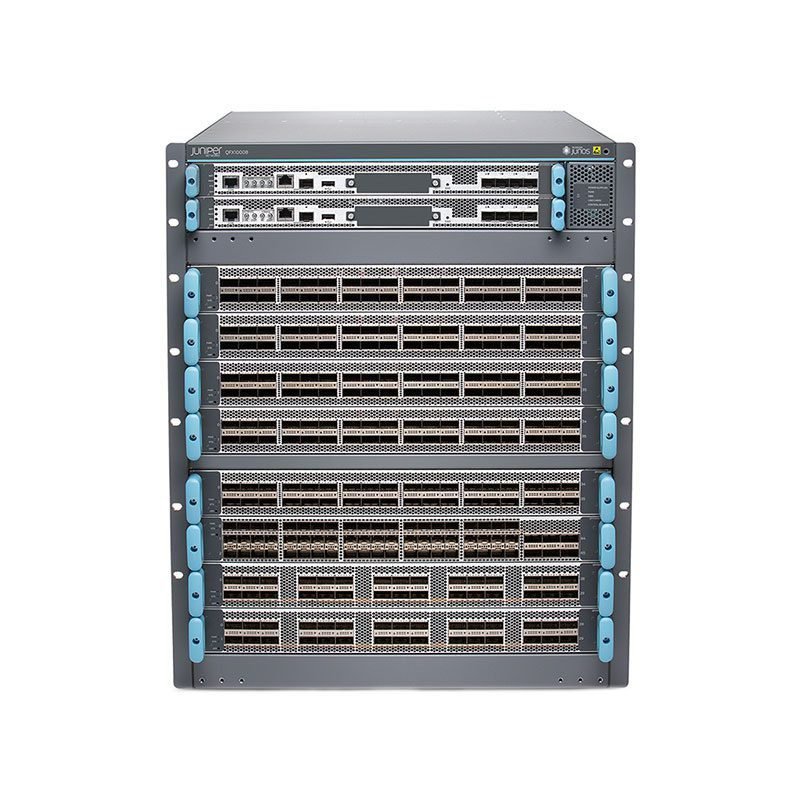

QFX10008-REDUND-T Juniper Networks QFX10008 Modular Switch

QFX10008-REDUND-T Technical Specifications

Juniper Networks QFX Series QFX10008 Managed Rack Mountable Switch

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX10008
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Built-in Devices: 50 GB SSD
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 2.5 GHz
RAM
Installed Size: 32 GB
Performance
Forwarding performance: 16 Bpps, Bandwidth per slot: 7.2 Tbps, Throughput: 48 Tbps
Capacity
IPv4 routes: 2,000,000; IPv6 routes: 2,000,000; Virtual interfaces (VLANs): 16,000; Queues per port: 8; ARP entries: 256,000
Networking
Type: Switch, Subcategory: Network hubs and switches, Form Factor: Rack-mountable
Routing Protocols: ECMP, BGP-4, OSPF, and more
Manageable: Yes
Power Device
Type: Internal power supply, Power Provided: 2700 watt
Dimensions & Weight
Width: 17.4 inch, Depth: 32 inch, Height: 22.6 inch, Weight: 321.87 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F, Humidity: 5 – 90% (non-condensing)
