QFX3600-16Q-ACR Juniper Networks High-Performance Switch

QFX3600-16Q-ACR Technical Specifications

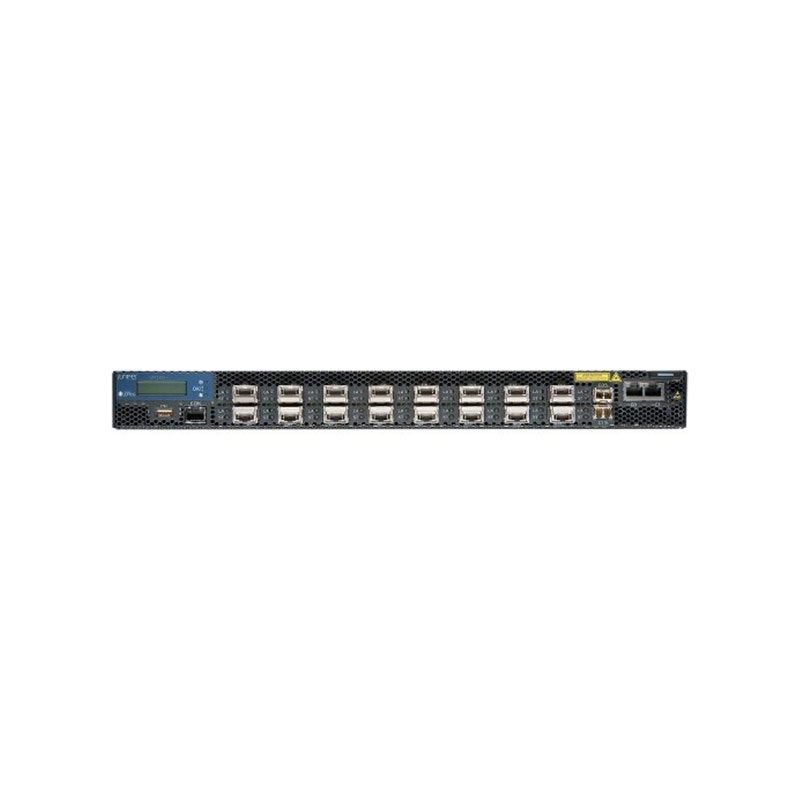

Juniper Networks QFX Series QFX3600 Switch with 16 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX3600 Switch
Packaged Quantity: 1
Chassis
Airflow Direction: Back to front airflow
Built-in Devices: Status LCD
Capacity
QoS hardware queues: 12, BGP peers: 256, IPv4 routes: 16,000, ACL entries: 1,500, VLANs: 4,096
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 40 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Qty: 16
Advanced Switching: Layer 3
Routing Protocols: OSPF, PIM-SM, Static IPv4 routing, IGMPv2, PIM-SSM, IGMPv3, MSDP, IGMP, BGP, VRRP
MAC Address Table Size: 128K entries
Jumbo Frame Support: 9216 bytes
Manageable: Yes
Remote Management Protocol: SSH, Telnet, CLI, SNMP 1, SSH-2, SNMP 2, SNMP 3
Status Indicators: LCD display
Features: Supports Rapid Spanning Tree Protocol (RSTP), DHCP, ARP, RADIUS, and more. Compliant with various IEEE standards.
Ports
Qty: 16
Type: 40 Gigabit QSFP+
Interface Provided: 16 x QSFP+, 2 x RJ-45 management, 1 x USB Type A management, 2 x SFP management, 1 x console management
Power Device
Type: Internal power supply
Hot-Plug: Yes
Power Redundancy: Yes
Nominal Voltage: AC 120/230 V
Power Consumption: 345 watts
80 PLUS Certification: Silver
System Requirements
OS Required: JUNOS
Dimensions & Weight
Width: 17 inches
Depth: 19.4 inches
Height: 1.7 inches
Weight: 30.86 lbs
Environmental Parameters
Operating Temperature: 32°F to 104°F
Storage Temperature: -40°F to 158°F
Humidity: 5 – 90% (operating), 0 – 95% (storage)
