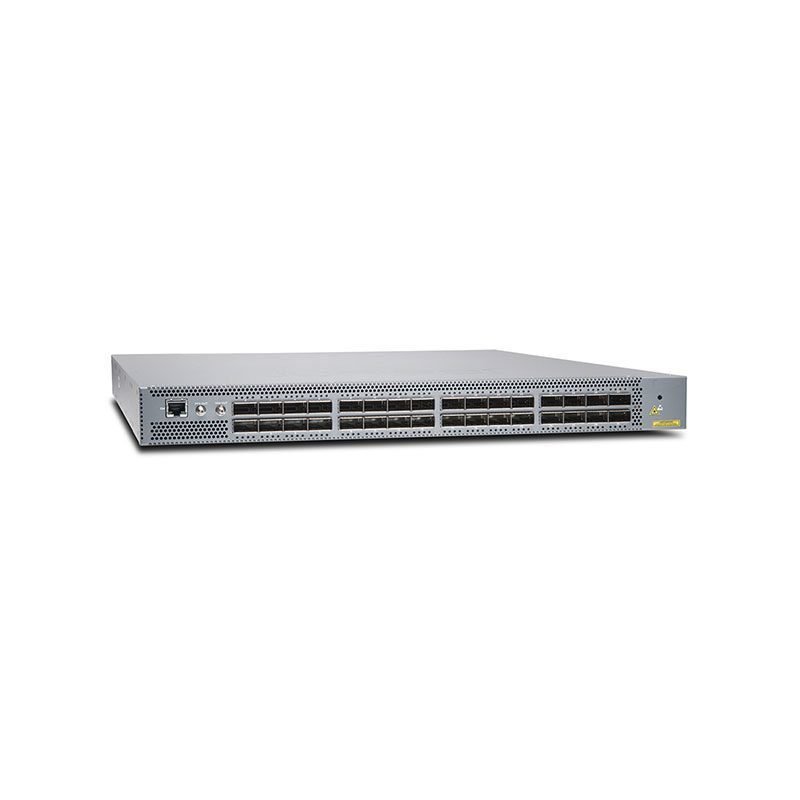

QFX5200-32C-AFI Juniper Networks QFX5200-32C Ethernet Switch

QFX5200-32C-AFI Technical Specifications

Juniper Networks QFX Series QFX5200-32C Switch with 32 Managed Ports

Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks QFX Series
Model: QFX5200-32C
Packaged Quantity: 1
Chassis
Airflow Direction: Back to front airflow
Built-in Devices: 64 GB SSD
Processor
Installed Qty: 1
Manufacturer: Intel
Clock Speed: 1.8 GHz
RAM
Technology: SDRAM
Installed Size: 16 GB
Performance
Throughput: 3.2 Tbps, Switching capacity: 2.4 Bpps
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 100 Gigabit Ethernet
Form Factor: Rack-mountable
Ports Qty: 32
Manageable: Yes
Features: Back to front airflow, Redundant hot-swappable fans, 16MB packet buffer
Ports
Qty: 32
Type: 100 Gigabit QSFP28 / 40 Gigabit QSFP+ (breakout compatible)
Interfaces: 32 x 100Gbit/40Gbit LAN QSFP28/QSFP+ (breakout compatible), 1 x USB 2.0 management, 2 x SFP management, 2 x 1000Base-T RJ-45 management, 1 x console management
Power Device
Type: Internal power supply
Hot-Plug: Yes
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Power Provided: 850 watts
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 480 watts
80 PLUS Certification: 80 PLUS Silver
System Requirements
OS Required: JUNOS
Miscellaneous
Color Category: Gray
Height (Rack Units): 1
Compliant Standards: EN 60950-1, CISPR 24, EN 60825-1, EN55024, BSMI CNS 13438 Class A, FCC CFR47 Part 15 A, EN 61000-3-3, China RoHS, EN 300386, IEC 60950-1, ETSI 300 019, EN 55022 Class A, VCCI Class A, REACH, CISPR 22 Class A, UL 60950-1, EN 61000-3-2, RoHS 6/6, WEEE, ETS 300 753, ICES-003 Class A, CAN/CSA C22.2 No. 60950-1, ETSI, KN22 Class A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width: 17.4 inch
Depth: 20.5 inch
Height: 1.7 inch
Weight: 23.81 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 104°F
Min Storage Temperature: -40°F
Max Storage Temperature: 158°F
Humidity Range Operating: 5 – 90% (non-condensing)
Humidity Range Storage: 5 – 95% (non-condensing)
