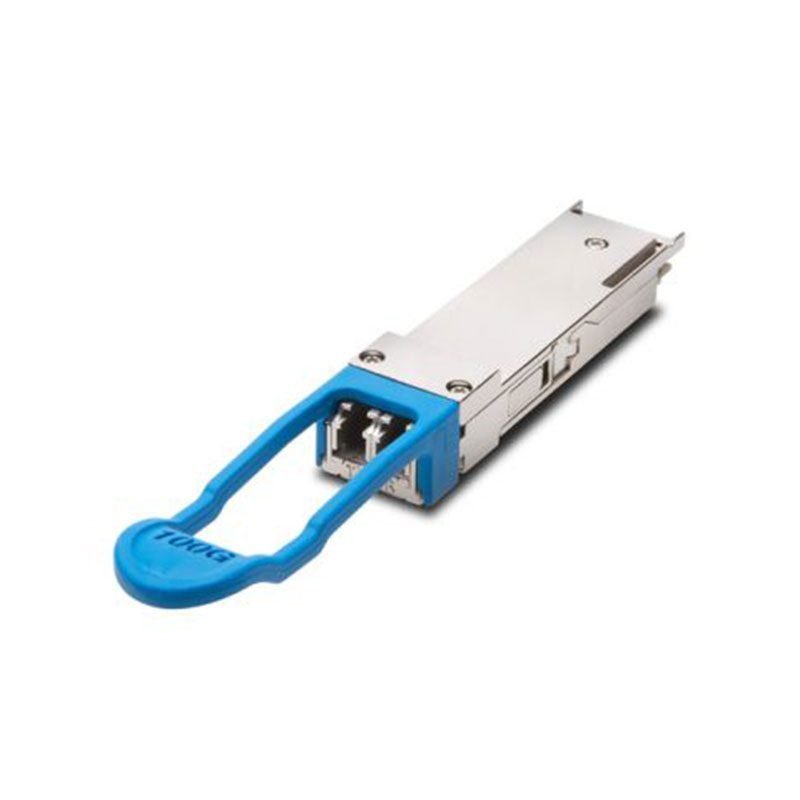

QSFP-100G-LR4-T2 Juniper 100G LR4 Ethernet QSFP28 Module

QSFP-100G-LR4-T2 Technical Specifications

Juniper Networks 100G-LR4 Ethernet Only QSFP28 Module Type

Media Type: Single-Mode Fiber (SMF)
Connectors: Double LC
TX Wavelength: LAN WDM 1310nm
RX Wavelength: LAN WDM 1310nm
Minimum Optical Budget: 6.6 dB
Maximum Distance: 10km
Data Rate Supported: 103.125 Gbps
Applications: 100G Ethernet (103.125Gbps)
DDM/DOM: Yes
CDR (Clock and Data Recovery) chip: Supported
Forward Error Correction (FEC): Host FEC Supported
Transmitter Type: EML LAN WDM TOSA
Minimum Transmitting Power: Each Lane -4.3 dB
Tx Wavelength Bandwidth: Four LAN WDM separated 1310 nm lanes (15.66 nm 1294.53 – 1310.19nm) with center wavelengths at 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm
Maximum Transmitting Power: Each Lane 4.5 dB
Average Launch Power (Min) Each Lane: -4 dBm
Receiver Sensitivity: Each Lane -8.6 dBm
Average Launch Power (Max) Each Lane: 4.5 dBm
Extinction Ratio (Min): 4 dB
Receiver Type: PIN ROSA
Rx Wavelength Bandwidth: Four LAN WDM separated 1310 nm lanes (15.66 nm 1294.53 – 1310.19nm) with center wavelengths as above
Average Receiver Sensitivity (Min) Each Lane: -10.6 dBm
Average Receiver Sensitivity (Max) Each Lane: 0 dBm
Receiver Overload: 3.3 dBm
Temperature Range: Standard 0°-70°C
Storage Temperature: -40° to 85°C
Relative Humidity: 0 to 85%
Power Consumption: ≤3.5W
Power: +3.3V
Chipset: Macom, Sumitomo, Samtech, Oclaro, Avago, II-IV
Compliance: Class 1 FDA, IEC60825-1 Laser Safety Compliant, IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, RoHS-6, CE, QSFP28 MSA, SFF-8636, SFF-8665
