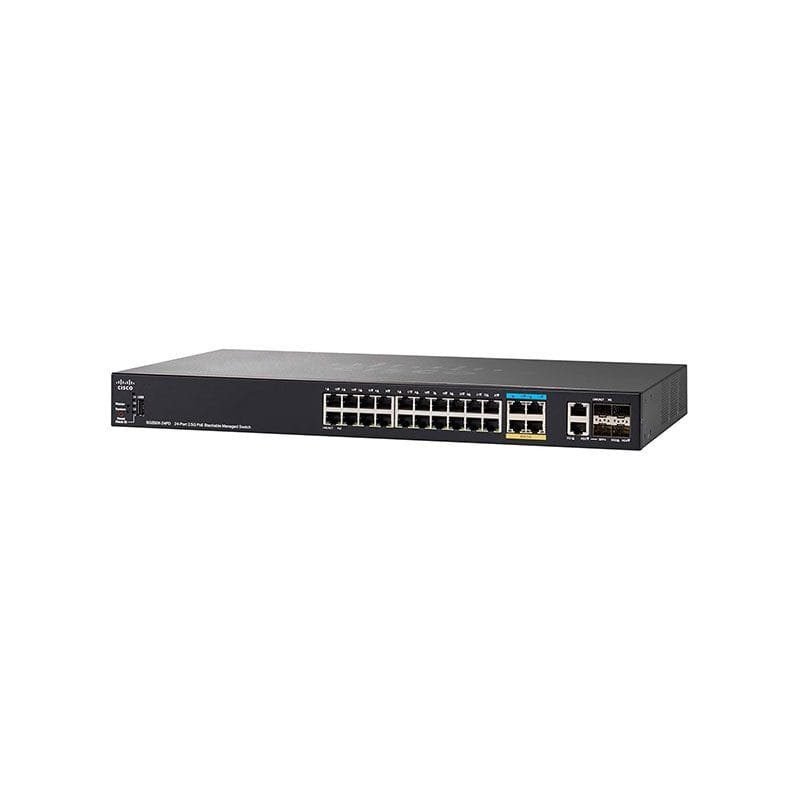

SG350X-24PD – Cisco 350X Series Managed Stackable Switch

SG350X-24PD Technical Specifications

Cisco 350X Series Managed Stackable Switches featuring 20 x 10/100/1000 PoE+ ports with a 375W power budget, 4 x 10/100/1000/2500 PoE+ ports, and 4 x 10 Gigabit Ethernet ports

Product Description
The Cisco Small Business SG350X-24PD is a managed, rack-mountable switch with 24 ports.
Product Series: SG350X
Device Type
Managed switch – 24 ports – stackable
Enclosure Type
1U rack-mountable
Subtype
Gigabit Ethernet
Ports
20 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+ + 4 x 10/100/1000/2.5G (UPOE)
Power Over Ethernet (PoE)
Supports PoE+
PoE Budget
375 W
Performance
Switching capacity (64-byte packets): 104.16 Mpps; Total switching capacity: 140 Gbps
Capacity
MSTP instances: 16; Active VLANs: 4096; Static IPv4 routes: up to 8000; ACL entries: up to 2000
MAC Address Table Size
64K entries
Jumbo Frame Support
9000 bytes
Routing Protocols
Supports IGMPv2, IGMPv3, static IPv4 and IPv6 routing, policy-based routing, MLDv2, and CIDR
Remote Management Protocol
Includes SNMP 2, SNMP 3, RMON, Telnet, HTTP, HTTPS, TFTP, SSH, and CLI
Features
Includes flow control, layer 3 switching, DHCP support, IGMP snooping, DoS attack prevention, and more.
Compliant Standards
IEEE 802.3 standards including 802.3u, 802.1D, 802.1Q, and others.
Power
AC 120/230 V (47 – 63 Hz)
Dimensions (WxDxH)
17.3 in x 10.1 in x 1.7 in
Weight
8.8 lbs
