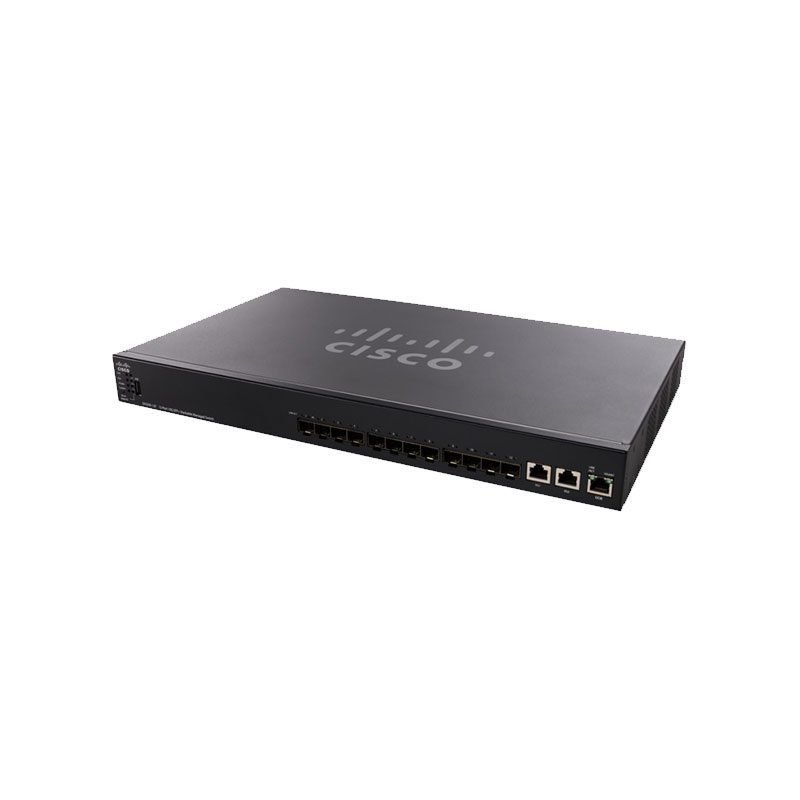

SX550X-12F-K9 Cisco 550X Series Managed Switch

SX550X-12F-K9 Technical Specifications

Cisco 550X Series SX550X-12F Switch 12 Ports

Manufacturer: Cisco Systems
Brand: Cisco
Product Line: Cisco 550X Series
Model: SX550X-12F
Processor
Manufacturer: ARM
Clock Speed: 1.3 GHz
RAM
Installed Size: 512 MB
Flash Memory
Installed Size: 256 MB, 256 MB
Performance
Forwarding performance (64-byte packets): 178.56 Mpps, Switching capacity: 240 Gbps
Capacity
IPv4 routes (static): 7168, ACL rules: 2000, VLANs supported: 4094, QoS hardware queues: 8, IPv6 routes (static): 1792
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: 10 Gigabit Ethernet
Form Factor: Desktop, Rack-mountable
Stackable: Yes, Max Units In A Stack: 8
Ports Quantity: 12
Advanced Switching: Layer 3
Routing Protocol: VRRPv3, RIP-2, CIDR, VRRPv2, IGMPv2, MLDv2, IGMP, IGMPv3, Policy-based routing (PBR), MLD
MAC Address Table Size: 32,000 entries
Jumbo Frame Support: 9000 bytes
Ports
Quantity: 12
Additional Ports
Quantity: 2
Type: Combo 10 Gigabit SFP+
Interface Provided
Interfaces: 1 x console RJ-45, 1 x management (Gigabit LAN), 1 x USB Type A, 10 x 10GBase-T SFP+, 2 x 10GBase-T RJ-45, 2 x 10GBase-X SFP+
Cable Details
Cables Included: 1 x console cable
Power Device
Type: Internal power supply
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Features: Redundant Power System (RPS) connector
Miscellaneous
Color Category: Black
Rack Mounting Kit: Included
Height (Rack Units): 1
Encryption Algorithm: SSL
Authentication Method: RADIUS, TACACS, TACACS+
MTBF: 652,253 Hours
Compliant Standards: CSA 22.2, FCC CFR47 Part 15 A, Plug and Play, UL 60950, USGv6
Dimensions & Weight
Width: 17.3 inches
Depth: 1.7 inches
Height: 10.1 inches
Weight: 7.54 lbs
