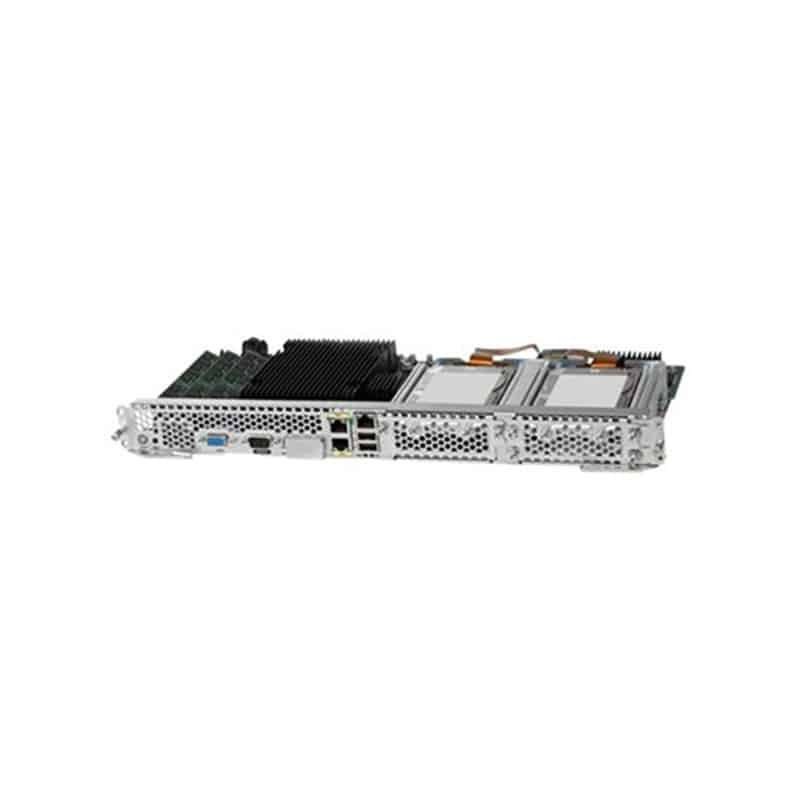

UCS-E160D-M1/K9 Cisco UCS E160D M1 Blade Server – Xeon E5-2428L

UCS-E160D-M1/K9 Technical Specifications

Cisco UCS E160D M1 – Blade – Xeon E5-2428L 1.8 GHz

Audio Output Details
Speaker Type: None
Bay Provided
Form Factor: 2.5″
Free Qty: 2
Total Qty: 2 Bays
Cache Memory
Installed Size: 15 MB
Per Processor Size: 15 MB
Chassis
Form Factor: Blade
Hot-Swap Bays Qty: 2 Bays
Server Storage Bays: Hot swap
Server Swappable Drive Interface: SAS
Dimensions & Weight
Depth: 7.5 in
Height: 1.6 in
Weight: 7.05 lbs
Width: 16.2 in
Environmental Parameters
Humidity Range Operating: 5 – 95%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Expansion Slots
Type: CPU, Memory, PCIe
Header
Brand: Cisco
Model: E160D M1
Product Line: Cisco UCS
Interface Provided
Qty: 1 Type: KVM
Qty: 2 Type: USB 2.0
Type: LAN (Gigabit Ethernet)
Processor
Clock Speed: 1.8 GHz
Installed Qty: 1
Number of Cores: 6-core
Processor Number: E5-2428L
RAM
Installed Size: 8 GB
Max Supported Size: 48 GB
Memory Speed: 1333 MHz
Technology: DDR3 SDRAM
