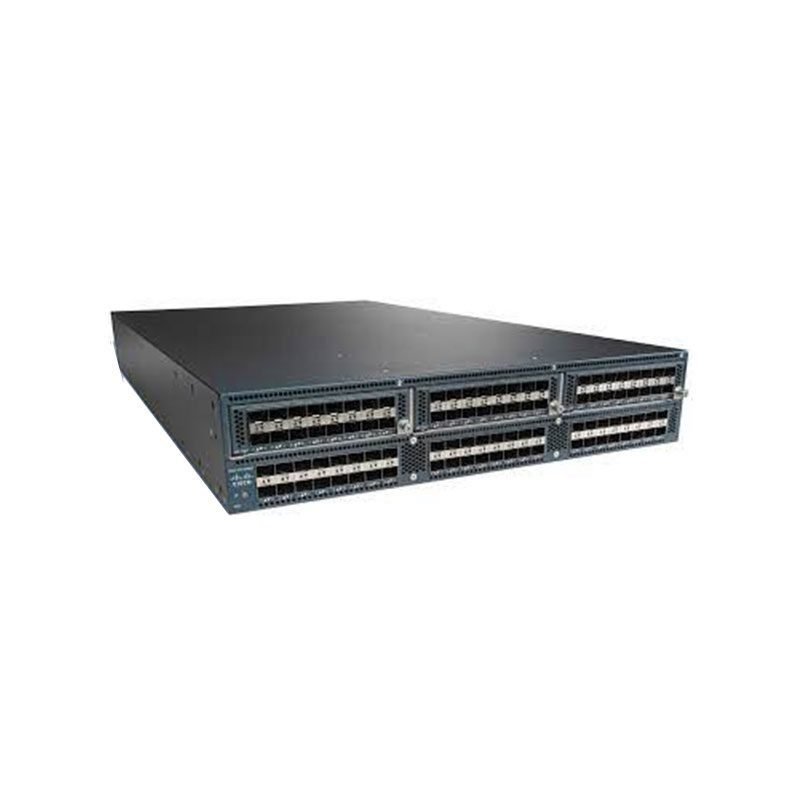

UCS-SL-BD-FI96 Cisco UCS 6296UP 96-Port Fabric Interconnect Switch

UCS-SL-BD-FI96 Technical Specifications

Cisco UCS 6296UP 96-Port Fabric Interconnect

Cable Specifications
Connectivity Type: Twinax copper cable
Length: 10 ft and 3.3 ft
Included Qty: 32 and 8
Dimensions & Weight
Depth: 29.5 in
Height: 3.5 in
Width: 17.3 in
Environmental Conditions
Operating Humidity: 5 – 95% (non-condensing)
Storage Humidity: 5 – 95% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Max Storage Temperature: 158 °F
Min Storage Temperature: -40 °F
Header Information
Brand: Cisco
Manufacturer: Cisco Unified Computing
Model: 6296UP 96-Port Fabric Interconnect (Not Sold Standalone)
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Specifications
Management Comments: RJ-45 Connector Type
Quantity: 1
Type: 1000Base-T
SFP+ Connector Type: 18
Miscellaneous Features
Color: Blue
Compliant Standards: RoHS, UL 60950-1, and more
Rack Height: 2U Rack Mount
Included Accessories: 3 x filler panels, Accessory kit
Networking Capabilities
Standards: IEEE 802.1p, IEEE 802.3ad (LACP), and others
Features: 4 fans, Layer 2 switching, VLAN support, and more
Jumbo Frame Support: 9216 bytes
Manageable: Yes
Ports: 96
Remote Management Protocol: RMON
Performance Metrics
Throughput Type: 1920 Gbps
Ports Type: 10 Gigabit / FCoE SFP+
Power Specifications
Frequency: 50/60 Hz
Hot-Plug Capability: Yes
Installed Qty: 2
Nominal Voltage: AC 120/230 V
Power Redundancy: Yes (1+1 scheme)
