UCS-SP-C240M4-B-F1 Technical Specifications

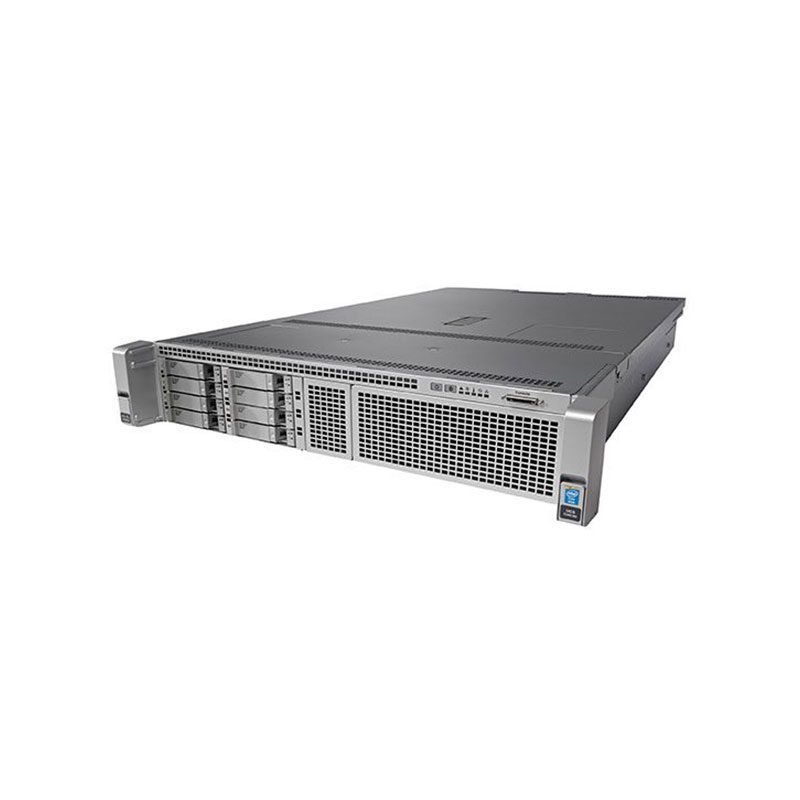

Cisco Systems UCS C240M4SX FREQ1
General Information
The UCS C240M4SX FREQ1 features a powerful configuration, including 2 Intel Xeon E5-2643 v4 processors and 256 GB of standard memory, expandable up to 1.50 TB. Its part number is UCS-SP-C240M4-B-F1, and it belongs to the C240 M4 series of servers.
Controllers
This server supports Serial SATA/600 controller types and RAID configurations, including levels 0, 1, and 10.
Display & Graphics
It includes a Matrox G200e graphics controller with a memory capacity of up to 8 MB.
Memory
Equipped with 24 DDR4 RAM slots, it utilizes DDR4 SDRAM technology.
Network & Communication
The server supports Gigabit Ethernet technology for robust networking capabilities.
Power Description
It operates on input voltages of 120 V AC and 230 V AC.
Processor & Chipset
This model supports two processors, both of which are Intel Xeon with a hexa-core configuration running at 3.40 GHz.
Physical Characteristics
The server is designed for rack mounting with a 2U form factor, measuring 3.4″ in height, 19″ in width, and 30.2″ in depth.
