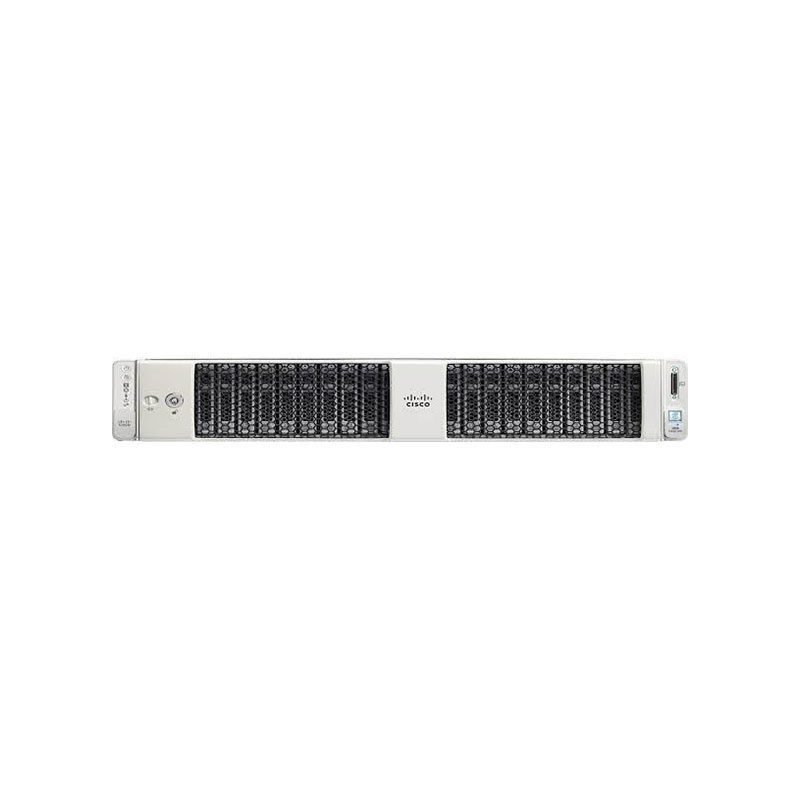

UCS-SPC240M5L-S1 Cisco UCS SmartPlay Select C240 M5L Server

UCS-SPC240M5L-S1 Technical Specifications

Cisco UCS SmartPlay Select C240 M5L Standard

Bay Provided
Form Factor: 2.5″ (Free Qty: 2, Total Qty: 2)
Form Factor: 3.5″ LFF (Free Qty: 12, Total Qty: 12)
Cache Memory
Installed Size: 22 MB (Per Processor Size: 11 MB, Type: L3 cache)
Chassis
Form Factor: Rack-mountable, with 12 front-accessible bays and 14 hot-swap bays. The server supports hot-swap drives with a 3.5″ form factor (SATA/SAS interface).
Dimensions & Weight
Depth: 29.1 in, Height: 3.4 in, Width: 17.6 in.
Environmental Parameters
Operating humidity: 8 – 90% (non-condensing), Max Operating Temperature: 95 °F, Min Operating Temperature: 50 °F.
Networking
Supports 10 Gigabit Ethernet and 40 Gigabit Ethernet with Cisco UCS Virtual Interface Card 1387. Remote management via CLI, IPMI 2.0, and SNMP.
Power Device
Includes 2 hot-plug power supplies providing 1600 Watts with redundancy. Nominal voltage: AC 120/230 V.
Processor
Powered by dual Intel Xeon Silver 4110 processors, each with 8 cores and a clock speed of 2.1 GHz.
RAM
Equipped with 96 GB of DDR4 SDRAM across 24 slots, supporting ECC and dual rank memory.
