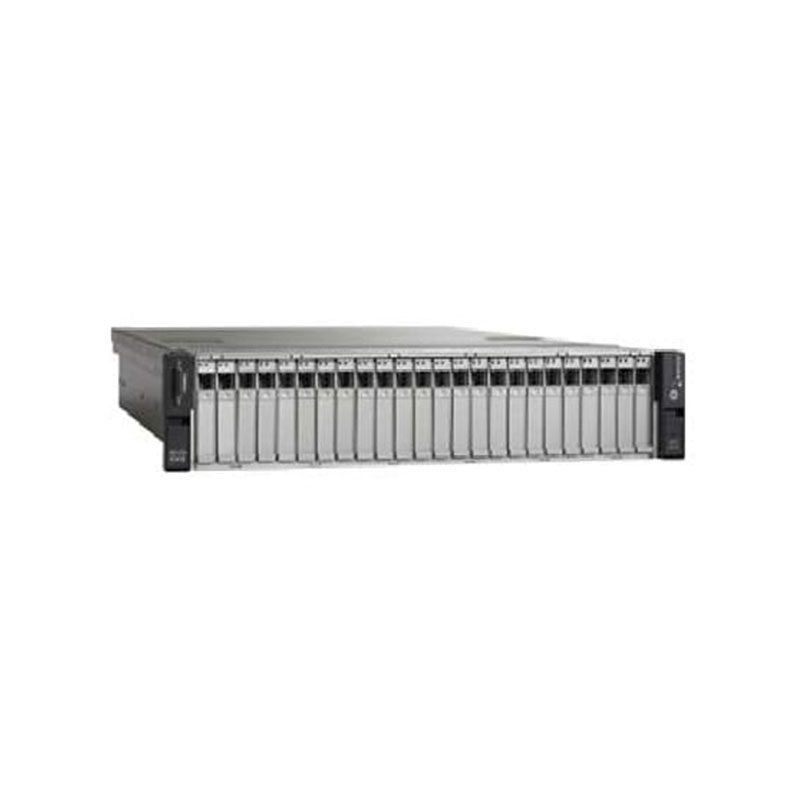

UCSC-C240-M3S Cisco UCS C240 M3 High-Density Rack-Mount Server

UCSC-C240-M3S Technical Specifications

Cisco UCS C240 M3 High-Density Rack-Mount Server

Bay Provided
Form Factor: 2.5″
Free Qty: 24
Total Qty: 24 Bays
Chassis
Form Factor: Rack-mountable
Hot-Swap Bays Qty: 24
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Form Factor (metric): 6.4 cm
Server Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 28 in
Height: 3.4 in
Weight: 32.19 lbs
Width: 17.5 in
Display
Type: None.
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Expansion Bays
Form Factor (metric): 6.4 cm
Type: Hot-swap
Expansion Slots
Size: Half-length
Size: Half-length, full-height
Type: PCIe 3.0 x16
Size: Three-quarter-length, full-height
Type: CPU
Type: DIMM 240-pin
Type: PCIe 3.0 x8
Hard Drive
Type: No HDD
Hard Drive (2nd)
Type: None
Hard Drive (3rd)
Type: None
Header
Brand: Cisco
Compatibility: PC
Manufacturer: Cisco Unified Computing
Model: C240 M3 High-Density Rack-Mount Server Small Form Factor
Packaged Quantity: 1
Product Line: Cisco UCS
Interface Provided
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Type: Management
Qty: 1
Type: Serial
Qty: 2
Type: USB 2.0
Qty: 4
Type: LAN (Gigabit Ethernet)
Type: KVM
Type: VGA
