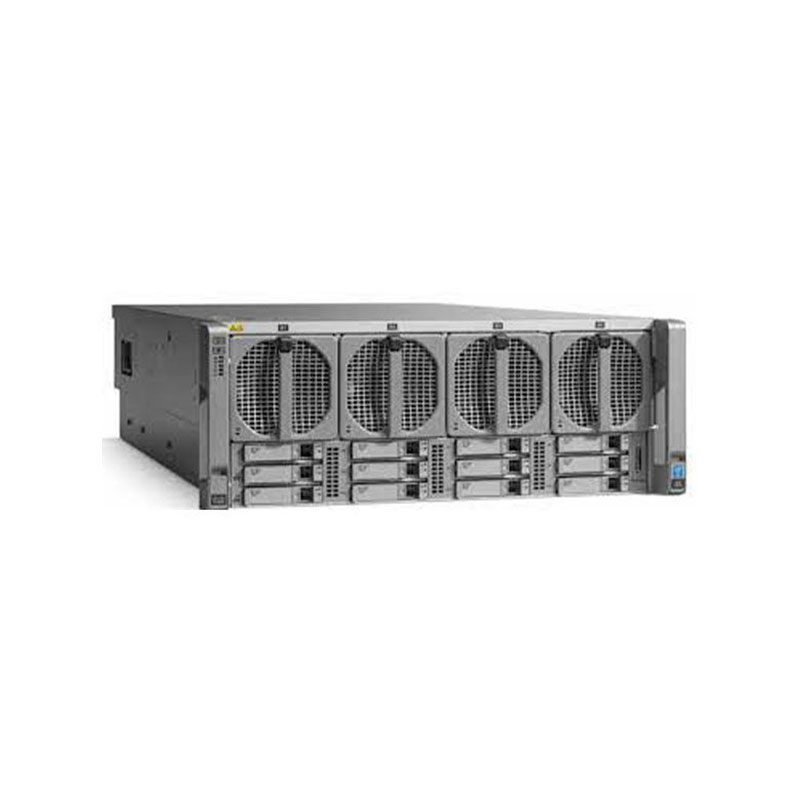

UCSC-C460-M4 Cisco UCS C460 M4 Rack-Mount Server

UCSC-C460-M4 Technical Specifications

Cisco UCS C460 M4 Rack Server – rack-mountable

Bay Provided
Form Factor: 2.5″ SFF
Free Qty: 0
Total Qty: 12 Bays
Chassis
Form Factor: Rack-mountable
Front Accessible Bays Qty: 12
Hot-Swap Bays Qty: 12
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot swap
Server Swappable Drive Form Factor: 2.5″
Server Swappable Drive Interface: SATA/SAS
Dimensions & Weight
Depth: 30 in
Height: 6.9 in
Width: 17.5 in
Environmental Parameters
Operating Humidity Range: 5 – 93% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F
Expansion Bays
Type: Hot-swap
Expansion Slots
Size: Full-length, Half-length, Three-quarter-length
Type: PCIe 3.0 x8, PCIe 3.0 x4, CPU, Memory board, PCIe 3.0 x16
Hard Drive
Type: No HDD
Header
Brand: Cisco
Model: C460 M4 Rack Server
Packaged Quantity: 1
Networking
Data Link Protocol: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Power Device
Max Supported Qty: 4
Type: Power supply – hot-plug
Processor
Max Supported Qty: 4
Server Scalability: 4-way
RAM
Data Integrity Check: ECC
Installed Size: 0 GB
Max Supported Size: 6 TB
