UCUCS-EZ-C240M3S Cisco UCS C240 M3 High-Density Rack-Mount Server

UCUCS-EZ-C240M3S Technical Specifications

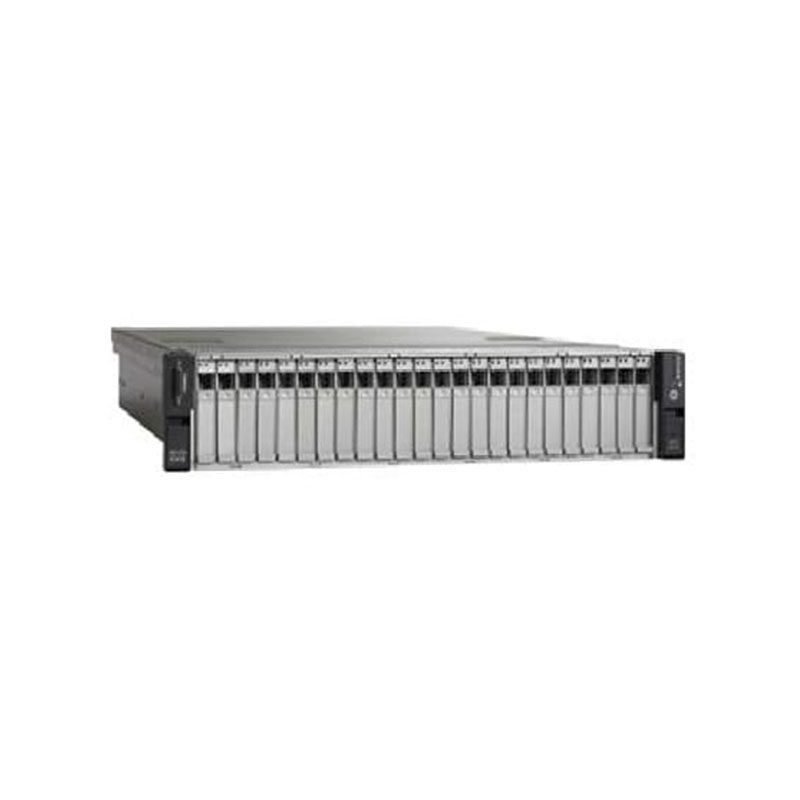

Cisco UCS C240 M3 High-Density Rack-Mount Server

Bay Configuration
Form Factor: 2.5″
Free Quantity: 8
Total Quantity: 24 Bays
Cache Memory
Installed Size: 40 MB
Per Processor Size: 20 MB
Type: L3 cache
Chassis Details
Form Factor: Rack-mountable
Hot-Swap Bays Quantity: 24
Server Storage Bays: Hot swap
Interface: SAS
Dimensions & Weight
Depth: 28 in
Height: 3.4 in
Width: 17.5 in
Environmental Parameters
Humidity Range Operating: 10 – 90% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 41 °F
Expansion Capabilities
Form Factor (metric): 6.4 cm
Type: Hot-swap
Expansion Slots
Size: Half-length, full-height, PCIe 3.0 x16
Size: Half-length, low-profile, PCIe 3.0 x16
Type: CPU, DIMM 240-pin
Hard Drive Specifications
Installed Quantity: 16
Interface Class: Serial Attached SCSI
Type: HDD
Header Information
Brand: Cisco
Model: C240 M3 High-Density Rack-Mount Server
Networking Features
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Power Device
Installed Quantity: 2
Nominal Voltage: AC 120/230 V
Processor
Clock Speed: 2.7 GHz
Installed Quantity: 2
RAM
Installed Size: 96 GB
Max Supported Size: 768 GB
