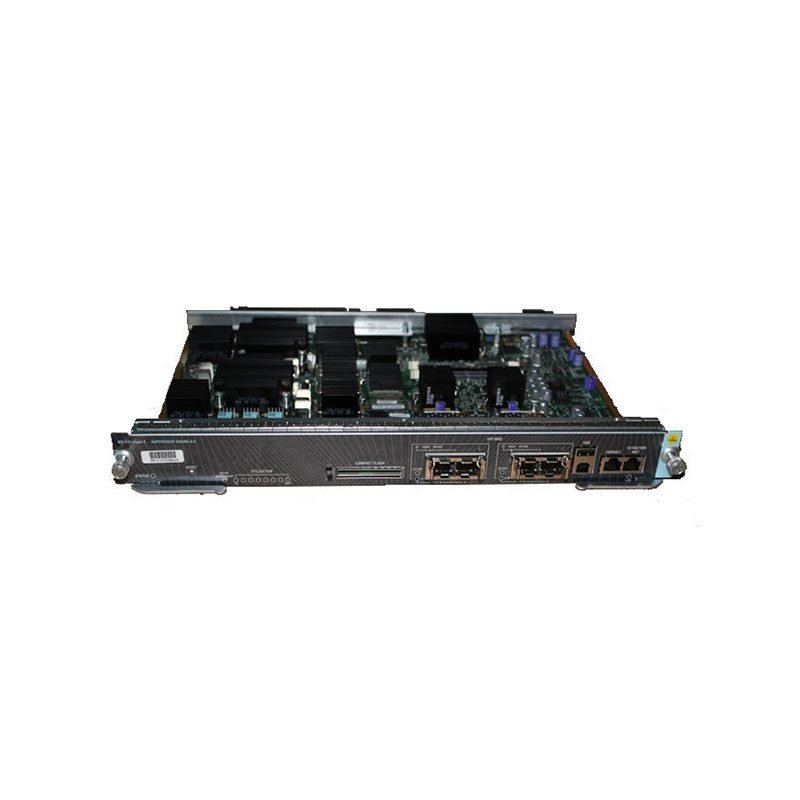

WS-X45-SUP6-E Cisco Catalyst 4500 E-Series Supervisor Engine Module

WS-X45-SUP6-E Technical Specifications

Cisco Catalyst 4500 E-Series Supervisor Engine

Key Features and Specifications:

• Centralized Switching Capacity: 320 Gbps
• Per-Slot Switching Capacity: 24 Gbps
• Throughput: 250 Mpps for IPv4, 125 Mpps for IPv6, 250 Mpps for L2 Bridging
• IPv4 Routing Entries: 256,000
• IPv6 Routing Entries: 128,000
• Multicast Routes: 32,000
• CPU: 1.3 GHz
• CPU Queues: 64
• SDRAM: 512 MB (upgradable to 1 GB)
• NVRAM: Boot flash (64 MB)
• Security and QoS Entries: 128,000
• NAC and DHCP Snooping Entries: 12,000
• MAC Addresses: 55,000
• Active VLANs: 4096
• Spanning Tree Protocol Instances: 10,000
• Switched Virtual Interfaces (SVIs): 4096
• SPAN Sessions: Maximum of 8 sessions (ingress and/or egress)
