XBR-000478 Technical Specification

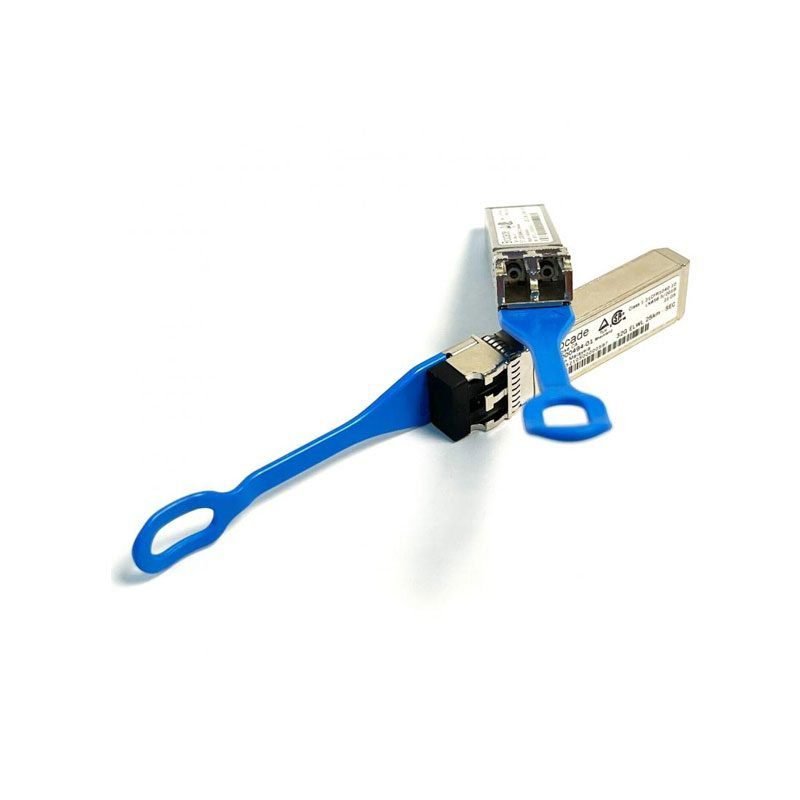

Brocade 32G FC SFP+ ELWL Transceiver
Brand: Brocade
Media
This hot-pluggable SFP+ transceiver features an LC connector and is optimized for extended long-wavelength applications. It operates effectively over single-mode fiber, supporting distances of 25 km with a minimum operational distance of 10 km. The transceiver is tailored for long-reach applications that utilize high-power transmitters. For loopback testing, an attenuation of approximately 6 dB is required.
Transmit (Tx):
• Wavelength range: 1295 nm to 1310 nm
• Average output power: +2.0 dBm to +7.0 dBm
• RIN: −130 dB/Hz maximum
• Minimum optical return loss: 26 dB
• OMA: +2.0 dBm to +7 dBm
Receive (Rx):
Average input power: 2 dBm maximum. Minimum optical return loss: 26 dB. Unstressed sensitivity: 41 µW, or −13.9 dBm.
Size
Width: 14.81 mm (0.58 inches)
Height: 11.90 mm (0.47 inches)
Depth: 56.50 mm (2.22 inches)
Power
Power consumption: 1.5W to 2.0W.
